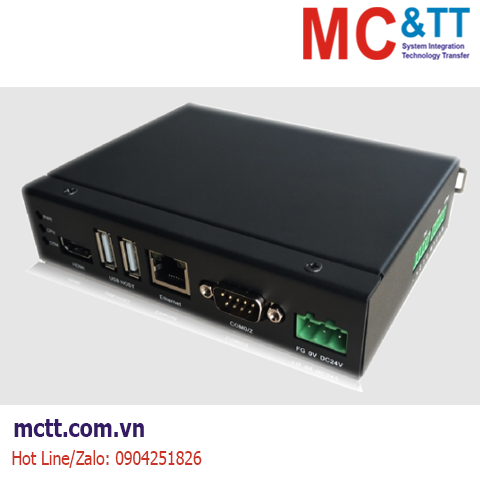

Box HMI không màn hình Kinco xF-SiHMI01 (3 COM, 2 USB Host, 1 Ethernet, 1 HDMI)

Chia sẻ

Thương hiệu: Kinco Loại: Đang cập nhật

Tình trạng: Còn hàng

Mã sản phẩm: xF-SiHMI01

HMI box without display

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Box HMI không màn hình Kinco xF-SiHMI01 (3 COM, 2 USB Host, 1 Ethernet, 1 HDMI)

Tính năng

High-end configuration: Cortex-A9 architecture, primary frequency is 1G, 512MB DDR3 + 4GB eMMC.
HDMI V1.4 Full HD(1920*1080@60Hz) high-resolution output.
Standard with 2 USB hosts, 3 serial ports (COM1 is the type of terminal interface), one network port.
The concept of separating the screen from the host, adapting various display devices, such as TV, monitor, projector, etc., through HDMI interface
2-channel digital input (programmable, standard 24V source), 3-channel digital output (programmable, standard 24V source).
Optional WiFi 802.11b /g/ N wireless network, SD card to expand storage capacity.
Various installation methods: DIN rail installation (35mm), VESA rack installation (75*75mm).

Thông số kỹ thuật

Performance specification
CPU	32Bit RISC Cortex-A9 1GHz
Storage	512MB DDR3 + 4GB eMMC
Interface Configuration
Display port	1HDMI V1.4 Full HD (19201080@60Hz)
Extensible memory	2*USB Host
Ethernet	10/100M self-adaption
I/O	2 channel digital input (programmable, standard 24V source) 3 channel digital output (programmable, standard 24V source)
Output power supply	1*DC 24V power supply (same input voltage), current 500mA
COM port	COM0:RS232/RS485/RS422 COM1:RS485 COM2:RS232
Electrical specification
Input power supply	DC10V~DC28V
Rated power	2.4W@24VDC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
Shell material	Metal
Shape size	11310430.2 mm
Installation	DIN rail installation (35mm) VESA rack installation (75*75mm)
Weight	0.47 Kg
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-30～80℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X,Y,Z direction/hour
Cooling method	Natural air cooling
Certification
Panel protection grade	IP20
CE certification	EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005
