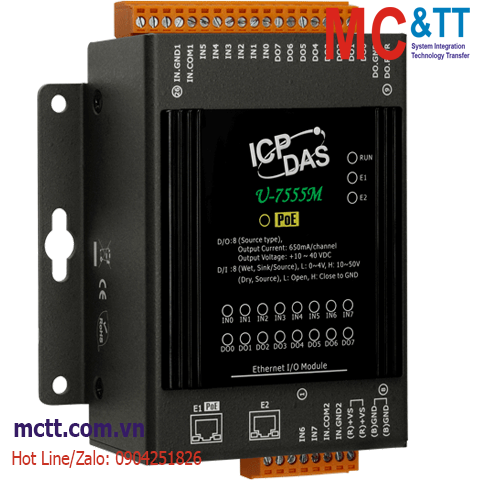

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Ethernet OPC UA + MQTT 8 kênh DI + 8 kênh DO ICP DAS U-7555M CR
Features
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development. WISE-7519ZM/S is specifically designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. Current input and voltage input are both supported. Open thermocouple detection and ESD/ EFT/Surge protection mechanisms are also included. The three digital output channels can be set as alarm outputs. WISE-7519ZM/S follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7519ZM/S also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced. By integrating with IF-THEN-ELSE rule engine, WISE-7519ZM/S provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7519ZM/S also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.
Specifications
| Software | |
|---|---|
| Protocol | ● OPC UA Server • OPC Unified Architecture: 1.02 • Core Server Facet • Data Access Server Facet • Method Server Facet • UA-TCP UA-SC UA Binary • User Authentication: Username/Password, X.509 Certificate • Security Policy: None, Basic128Rsa15 (Sign, Sign & Encrypt), Basic256 (Sign, Sign & Encrypt) • Recommend to keep the max. number of sessions within 3 connections. ● MQTT Client • Connect to the MQTT Broker to read or control the I/O channel value by the publish/subscribe messaging mechanism. (MQTT Ver. 3.1.1; TLS Ver. 1.2) |
| Function | Web Interface for Configuration |
| CPU Module | |
|---|---|
| CPU | 32-bit CPU (400 MHz) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 16 x I/O Channel Status |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| Wet Contact, ON Voltage Level | +10 VDC ~ +50 VDC |
| Wet Contact, OFF Voltage Level | +4 VDC Max. |
| Dry Contact, ON Voltage Level | Close to GND |
| Dry Contact, OFF Voltage Level | Open |
| Dry Contact, Effective Distance | 500 M Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 VDC ~ +40 VDC |
| Max. Load Current | 650 mA/Channel at 25°C |
| Overvoltage Protection | 47 VDC |
| Short-Circuit Protection | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE | Yes |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 3.7 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |
| Installation | Wall Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering infromation
| UA-7555M CR | OPC UA I/O Module with 8-ch DI, 8-ch DO and 2-port Ethernet Switch. (RoHS) |
