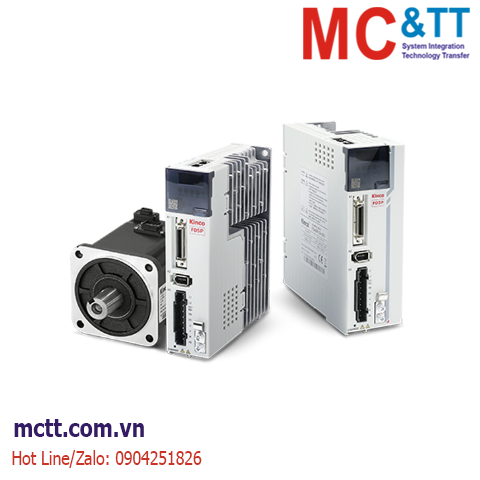

Miễn phí vận chuyển với đơn hàng từ 10.000.000đĐộng cơ AC Servo 100W, 3000 rpm with brake Kinco SMK40S-0010-30QBK-5LSA
Tính năng
Adopting -slot and -pole design, with small slot torque and low torque pulsation, which is conducive to reducing the vibration during the operation of the motor and making the torque output more smooth
The redesign of the fuselage structure shortens the length of the fuselage, which can save more installation space and reduce the size of the equipment for customers' equipment
The motor in the industry is at the highest insulation level, which can maintain high reliability and stability in high temperature extreme environment
Thông số kỹ thuật
| Series | Model | Rated power Pn(W) |
Rated torqueTn (Nm) |
Rated speed Nn(rpm) |
Rated current Arms(A) |
Shaft diameter (mm） | Length (mm) | |
| □=A | □=B (brake motor) | |||||||
| 40 Flange | SMK40S-0005-30□■K-5LSA | 50 | 0.16 | 3000 | 0.88 | 8 | 62.5±1 | 92.5±1 |
| SMK40S-0010-30□■K-5LSA | 100 | 0.32 | 1.2 | 8 | 75±1 | 105±1 | ||
| 60 Flange | SMK60S-0020-30□■K-5LSA | 200 | 0.64 | 1.55 | 14 | 77±1.5 | 109±1.5 | |
| SMK60S-0040-30□■K-5LSA | 400 | 1.27 | 2.93 | 14 | 95±1.5 | 127.1±1.5 | ||
| 80 Flange | SMK80S-0075-30□■K-5LSA | 750 | 2.39 | 3.9 | 19 | 103.7±1.5 | 133.2±1.5 | |
| SMK80S-0100-30□■K-5LSA | 1000 | 3.18 | 5 | 19 | 113.7±1.5 | 143.2±1.5 | ||
|
Note： □ = V ：Singleturn communication type optical encoder ■ = A ： Motor without brake |
||||||||
Thông tin đặt hàng
Tài liệu
