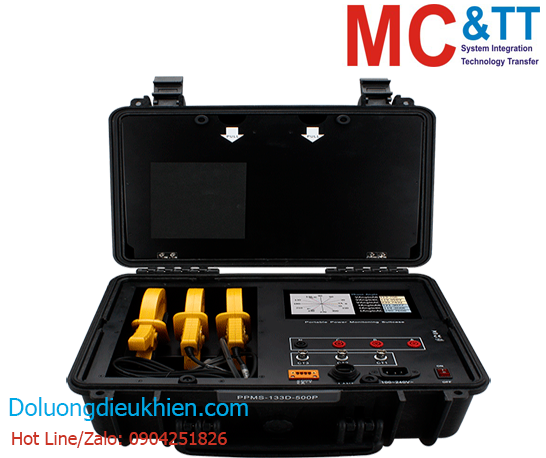

PPMS-133D-500P CR Portable Power Monitoring Suitcase (RoHS) Includes 500A CT x 3 (Inside Diameter 45 mm, Wire Lead 3 m)
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đPPMS-133D-500P CR: Bộ giám sát điện năng sách tay 3P4W, 3P3W, 1P3W, 1P2W, 500V, 500A
Features
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Voltage Measurements Up to 500 V
• Current Measurements up to 500 A
• Harmonic data capture (up to 31th order)
• Provide 7" Touch Panel for On-Site operations
• Support SNMP Protocol
• Temperature and Humidity Data Logger
Introduction
Portable Power Management Suitcase can measuring single to three-phase lines with a high degree of precision and accuracy. The PPMS-133D-500P is clamp on power meters designed to measure demand and harmonics, which are important for energy management, as well as basic electrical parameters such as voltage, current, power, power factor, and integrated power (watthours). PPMS-133D-500P is equipped with built-in Web Server that allows direct connections via browsers to the PPMS-133D-500P for viewing power data and setting up the system parameters. PPMS-133D-500P also off ers Modbus TCP/RTU Slave function that allows SCADA software to connect to PPMS-133D-500P to get real-time power data of the devices via Modbus TCP/RTU protocol.
Download
Ordering information
| PPMS-133D-500P CR | Portable Power Monitoring Suitcase (RoHS) Includes 500A CT x 3 (Inside Diameter 45 mm, Wire Lead 3 m) |
