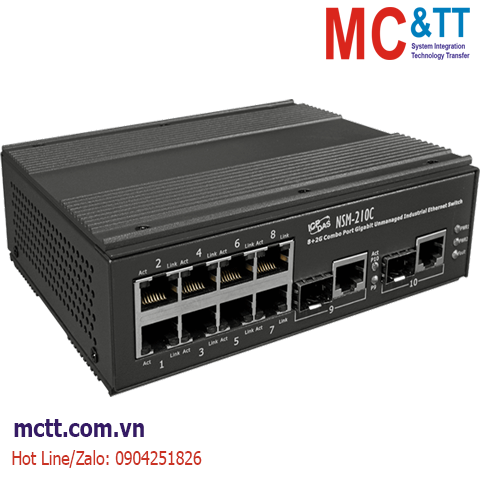

Miễn phí vận chuyển với đơn hàng từ 10.000.000đSwitch công nghiệp 8 cổng Ethernet + 2 cổng Combo Gigabit SFP ICP DAS NSM-210C CR
Feature
• Up to 2 Gigabit uplinks for high bandwidth data aggregation SFP socket for Easy and Flexible Fiber Expansion
• Supports Auto Negotiation and Auto MDI/MDI-X
• Supports Dual +12 ~ 48 VDC power input and 1 relay output
• Supports operating temperatures from -25 ~ +75°C
• Power loss alarm
Introduction
The NSM-210C is 8 Port 10/100 Base copper and 2 Gigabit fiber optic/copper combo port Ethernet Switch, Supports Auto Negotiation 、 Auto MDI/MDI-X 、high-speed(100 Mbps) and high-distance transmissions . Apart from this, NSM-210C supports dual power and provides a wide +12 VDC ~ +48 VDC power range to fit all the common power standards found in industrial automation, without external power converters.
Application
Specifications
| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, FAULT, SFP & Gigabit Act, 8-Port 10/100 Link and Act |
| Ethernet | |
|---|---|
| Ports | 8 x RJ-45, 10/100Base-T(X) 2 x RJ45 /SFP Slot Combo, 10/100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control |
| MAC Table | 8 K |
| Frame Buffer Memory | 1 Mbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
|---|---|
| Ports | 2 x 1000 Mbps SFP Fiber Module slots |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC (Non-isolation) |
| Redundant Power Inputs | Yes |
| Consumption | 0.15A @ 24VDC idle without loading; 0.25A @ 24VDC with full loading |
| Alarm Output | Yes,Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 51 x 164 x 129 (W x L x H) Wall mounting: 51 x 202 x 122 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Download
Ordering Information
| NSM-210C CR | 8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch (RoHS) |
