Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule M.2 5G ICP DAS MV31-W CR
Feature
Introduction

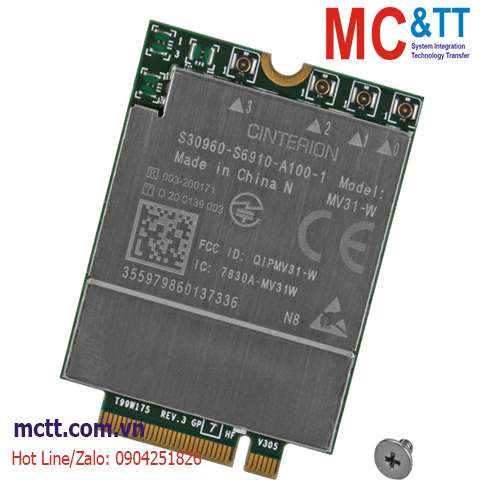

The MV31-W IoT modem card delivers ultra high-speed 5G enhanced mobile broadband (eMBB) for performance IoT applications such as industrial routers and gateways, digital signage, industrial computers and tablets in both Stand Alone (SA) and None Stand Alone (NSA) modes. It enables blistering fast data speeds of multiple gigabit per second transmission capability in both downlink and uplink plus-fallback to 4G LTE and 3G networks. It also provides excellent global coverage in both urban areas and regions where 5G is still emerging.
Application
Specifications
| 3G System | |
|---|---|
| Frequency Band | FDD Bands: 1, 2, 4, 5, 6, 8, 9, 19 |
| 4G System | |
|---|---|
| Frequency Band | FDD-LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71 TD-LTE Bands: 34, 38, 39, 40, 41, 42, 46 (LAA),48 (CBRS) |
| 5G System | |
|---|---|
| Frequency Band | FR1 FDD-LTE Bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n66, n71 FR1 TD-LTE Bands: n38, n41, n77, n78, n79 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30.0 x 42.0 x 2.5 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -30°C ~ +85°C |
Download
Ordering Information
| MV31-W CR | Ultra High-Speed 5G with LTE and 3G Fallback Modem Card |
