| Models |

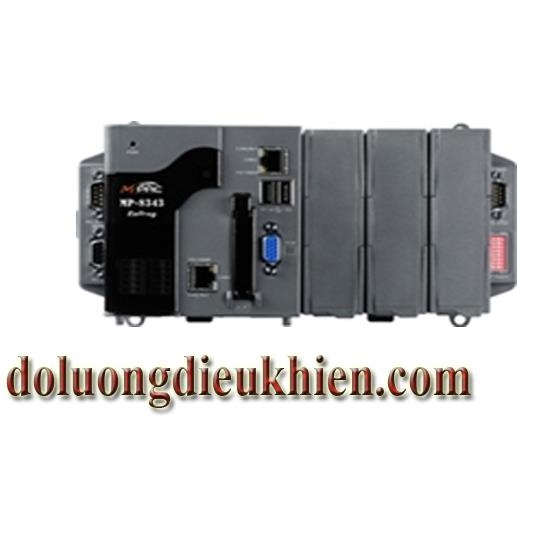

MP-8343 |
MP-8743 |
MP-8353 |
MP-8753 |
| System Software |
| OS |
Windows CE 6.0 core version |
| .Net Compact Framework |
3.5 |
| Embedded Services |
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| SDK Provided |
Dll for Visual Studio .Net 2005/2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese |
| CPU Module |
| CPU |
LX800, 500 MHz |
Atom Z510, 1.1 GHz |
| System Memory |
512 MB DDR SDRAM |
| Dual Battery Backup SRAM |
512 KB; data valid up to 5 years |
| Flash |
4 GB |
8 GB |
| EEPROM |
16 KB |
| CF Card |
Minimum 1 GB (support up to 32 GB) |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
Yes (8 bits) |
| Audio |
- |
Microphone-In and Earphone-Out |
| VGA & Communication Ports |
| VGA |
Yes (resolution: 1024 x 768, 800 x 600, 640 x480) |
| Ethernet (Giga bit) |
RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
2 |
4 |
| COM 1 |
Internal communication with I-87K modules in slot |
| COM 2 |
RS-232 (RxD, TxD and GND); non-isolated |
| COM 3 |
RS-485 (Data+, Data-) with internal self-tuner ASIC; 3000 VDC isolated |
| COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots |
| Number of Slots |
3 |
7 |
3 |
7 |
| Type of Modules Supported |
High profile modules only |
| Mechanical |
| Dimensions (W x L x H) |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
35 W |
| Consumption |
14.4 W |
16.8 W |
14.4 W |
16.8 W |
