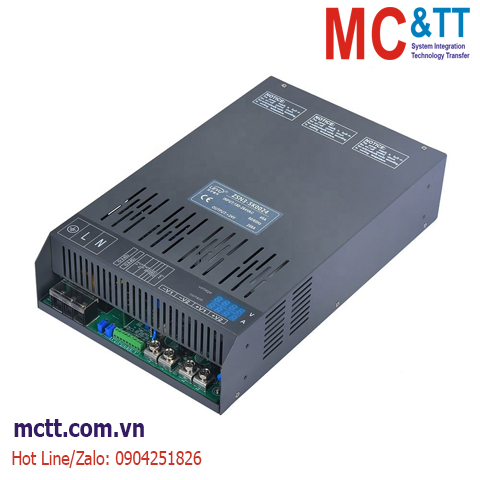

Bộ đổi nguồn AC/DC MCTT-ZSN3-5K0-150 5000W, 150V, 33A

Model

ZSN3-5K0-12

ZSN3-5K0-24

ZSN3-5K0-36

ZSN3-5K0-48

ZSN3-5K0-72

ZSN3-5K0-96

ZSN3-5K0-110

ZSN3-5K0-150

ZSN3-5K0-220

OUTPUT

DC Voltage

12V

24V

36V

48V

72V

96V

110V

150V

220V

Rated Current

333A

208A

138.8A

104A

69A

52A

45A

33A

22.7A

Current Range

0 - 333A

0 - 208A

0 - 138.8A

0 - 104A

0 - 69A

0 - 52A

0 - 45A

0 - 33A

0 - 22.7A

Rated Power

4000W

5000W

Ripple

250mV

270mV

300mV

400mV

500mV

600mV

850mV

900mV

1000mV

Optimal Range of Constant Current

6 - 12V

12 - 24V

18 - 36V

24 - 48V

36 - 72V

48 - 96V

55 - 110V

75 - 150V

110 - 220V

voltage accuracy

± 1.0%

linear adjustment rate

± 1.0%

load regulation

± 1.0%

Setup, Rise, Hold Up Time

1500mS，100mS/230VAC(at full load）

INPUT

Voltage Range

180 - 264VAC / 245 - 370VDC

Frequency Range

45Hz - 65Hz

 power factor

PF≧0.6/230VAC(at full load)

Efficiency

83 %

86 %

87 %

89 %

90 %

90 %

90 %

91 %

91 %

AC Current

＜ 55A

Leakage Current

＜ 3.0mA / 240VAC

PROTECTION

short circuit

Enter a constant current

Over Temp

The output is turned off, and it automatically resumes or restarts when the temperature drops
