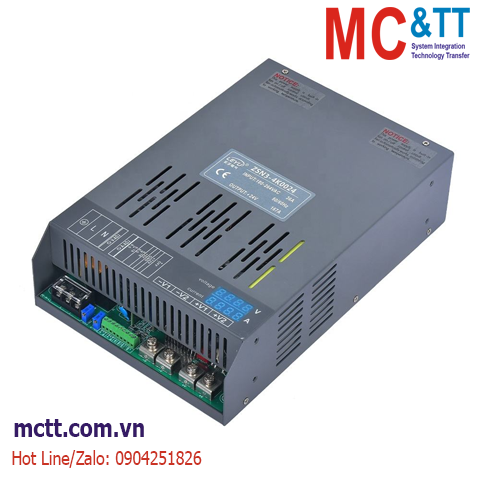

Bộ đổi nguồn AC/DC MCTT-ZSN3-4K0-96 4000W, 96V, 41.7A

Model

ZSN3-4K0-12

ZSN3-4K0-24

ZSN3-4K0-36

ZSN3-4K0-48

ZSN3-4K0-72

ZSN3-4K0-96

ZSN3-4K0-110

ZSN3-4K0-150

ZSN3-4K0-220

OUTPUT

DC Voltage

12V

24V

36V

48V

72V

96V

110V

150V

220V

Rated Current

290A

166.7A

111A

83.3A

55.6A

41.7A

36.4A

26.7A

18.2A

Current Range

0 - 290A

0 - 166.7A

0 - 111A

0 - 83.3A

0 - 55.6A

0 - 41.7A

0 - 36.4A

0 - 26.7A

0 - 18.2A

Rated Power

3500W

4000W

Ripple

250mV

270mV

300mV

400mV

500mV

600mV

850mV

900mV

1000mV

Optimal Range of Constant Current

6 - 12V

12 - 24V

18 - 36V

24 - 48V

36 - 72V

48 - 96V

55 - 110V

75 - 150V

110 - 220V

voltage accuracy

± 1.0%

linear adjustment rate

± 1.0%

load regulation

± 1.0%

Setup, Rise, Hold Up Time

1500mS，100mS/230VAC(at full load）

INPUT

Voltage Range

180 - 264VAC / 245 - 370VDC

Frequency Range

45Hz - 65Hz

 power factor

PF≧0.65/230VAC(at full load)

Efficiency

83 %

86 %

87 %

89 %

90 %

90 %

90 %

91 %

91 %

AC Current

＜ 30A

Leakage Current

＜ 3.0mA / 240VAC

PROTECTION

short circuit

Enter a constant current

Over Temp

The output is turned off, and it automatically resumes or restarts when the temperature drops
