Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ đổi nguồn AC/DC MCTT-SCN-1200-24 1200W, 24VDC, 50A

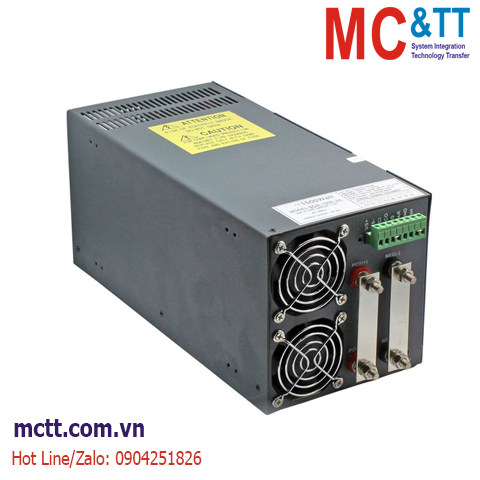

1200W Single Output with Parallel Function SCN-1200 series
Features:
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short -circuit and overload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter,minimum wave
|
SPECIFICATIONS |
||||
|
OUTPUT |
|
|||
|
Model |
SCN-1200-12 |
SCN-1200-15 |
SCN-1200-24 |
SCN-1200-48 |
|
DC Voltage |
12V |
15V |
24V |
48V |
|
Rated Current |
100A |
80A |
50A |
25A |
|
Current Range |
0-100A |
0-80A |
0-50A |
0-25A |
|
Rated Power |
1200W |
1200W |
1200W |
1200W |
|
Ripple & Noise |
120mVp-p |
1500mVp-p |
240mVp-p |
480mVp-p |
|
Voltage Adj. Range |
10~13.2V |
13.5~18V |
20~26.4V |
41~56V |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
±1% |
|
Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup,Rise,Hold Up Time |
1.5s,50ms,20msat full load |
|||
|
|
|
|||
|
INPUT |
|
|||
|
Voltage Range |
200-260VAC 47~63V |
|||
|
AC Current |
11A/230VAC |
|||
|
Efficiency |
83% |
85% |
85% |
87% |
|
Inrush Current |
120A/230V |
|||
|
Leakage Current |
<3.5mA/240VAC |
|||
|
|
|
|||
|
PROTECTION |
|
|||
|
Over Load |
Current limiting delay shutdown o/p voltage ,repower onto recover |
|||
|
Over Temp. |
TSW1 (Power transistor when temp>100℃ shut down O/P voltage re-power on to recover |
|||
|
|
|
|||
|
ENVIRONMENT |
|
|||
|
Working Temp., Humidity |
-10℃~+65℃(Refer to output derating curve),20%~90%RH |
|||
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|||
|
Temp.Coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~200Hz,2G 10min,/1cycle,Period for 60min,Each X.Y.X axes |
|||
|
|
|
|||
|
SAFETY |
|
|||
|
Withstand Voltage |
I/P-O/P , I/P-F/G 1500VAC |
|||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|||
|
|
|
|||
|
STANDARD |
|
|||
|
Safety Standard |
Meet UL1950requirement(Not apply for the mark) |
|||
|
EMC Standard |
CISPR22(EN55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2 |
|||
|
|
|
|||
|
OTHERS |
|
|||
|
Dimension |
291*132*132mm(L*W*H) |
|||
|
Weight |
5.0Kg |
|||
