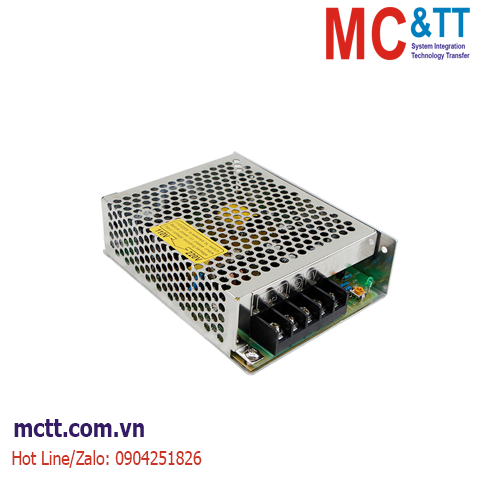

Bộ đổi nguồn tổ ong MCTT-S-35-12 35W, 12VDC, 3A

SPECIFICATIONS

OUTPUT

Model

S-35-5

S-35-9

S-35-12

S-35-15

S-35-24

DC Voltage

5V

9V

12V

15V

24V

Rated Current

7A

3.6A

3A

2.4A

1.5A

Current Range

0-7A

0-3.6A

0-3A

0-2.4A

0-1.5A

Rated Power

35W

32.4W

36W

36W

36W

Ripple & Noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Voltage Adj. Range

-5%,+10%

±10%

±10%

±10%

±10%

Voltage Tolerance

±2%

±1%

±1%

±1%

±1%

Setup, Rise, Hold Up Time

200ms,100ms,30ms at full load

Voltage Range

85~132VAC/170~264VAC selected by switch   47~63Hz; 240~370VDC

AC Current

0.8A/115V   0.45A/230V

Efficiency

70%

72%

76%

78%

78%

Inrush Current

Cold start 18A/115V   36A/230V

Leakage Current

<2mA/240VAC

Over Load

110%~150%

Protection type: Fold back current limiting, recovers automatically after fault condition is removed

Working Temp., Humidity

-10℃~+60℃; 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃; 10%~95%RH

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part15 J Conduction Class B

Dimension

129*98*38mm (L*W*H)

Weight

0.41Kg

Packing

30pcs/13.4Kg/0.86CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation
