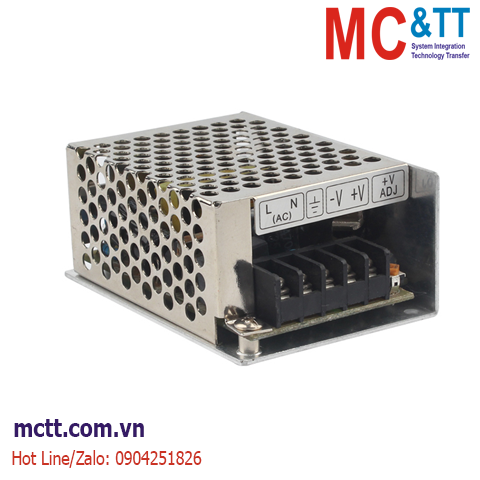

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ đổi nguồn tổ ong AC/DC MCTT-MS-15-5 15W, 5V, 3A
15W Single Output Switching Power Supply MS-15 series
Low price and high reliability
105℃ output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With Short-circuit and overload protection
Compact size, light weight
100% full-load burning test
1 year warranty
| SPECIFICATIONS | |||
| OUTPUT | |||
| Model |
MS-15-5 |
MS-15-12 |
MS-15-24 |
| DC Voltage |
5V |
12V |
24V |
| Rated Current |
3A |
1.3A |
0.7A |
| Current Range |
0-3A |
0-1.3A |
0-0.7A |
| Rated Power |
15W |
15.6W |
16.8W |
| Ripple & Noise |
80mVp-p |
120mVp-p |
150mVp-p |
| Voltage Adj. Range |
-9%~+10% |
±10% |
±10% |
| Voltage Tolerance |
±2% |
±1% |
±1% |
| Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
| Load Stability |
±1% |
±0.5% |
±0.5% |
| Setup, Rise, Hold Up Time | 200s,100ms,30ms at full load | ||
| INPUT |
|
||
| Voltage Range | 100~240VAC 47-63Hz; 240~370VDC | ||
| AC Current | 0.5A/115V 0.25A/230V | ||
| Efficiency |
76% |
78% |
80% |
| Inrush Current | Cold-start current 15A/115V 30A/230V | ||
| Leakage Current | <0.5mA/240VAC | ||
| PROTECTION |
|
||
| Over Load | 105%~150% rated output power | ||
| Protection type: Fold back current limiting Reset: auto recovery | |||
| Over Voltage | ………… | ||
| Over Temp. | ………… | ||
| ENVIRONMENT |
|
||
| Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve), 20%~90%RH | ||
| Storage Temp., Humidity | -20℃~+85℃,10%~95% RH non-condensing | ||
| Temp. Coefficient | ±0.02%/℃(0~50%) | ||
| Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | ||
| SAFETY | |||
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| STANDARD | |||
| Safety Standard | Meet UL1012 requirement | ||
| EMC Standard | Meet EN55022, class A | ||
| OTHERS | |||
| Dimension | 84*58*38mm(L*W*H) | ||
| Weight | 0.2Kg | ||
| NOTE | |||
| 1.The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70% RH.Humidity. 2.Error.include the setting error,line stability and load stability. 3.Wave test:adopting “A12”double wire for 20MHz,and 0.1UF & 47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. | |||
