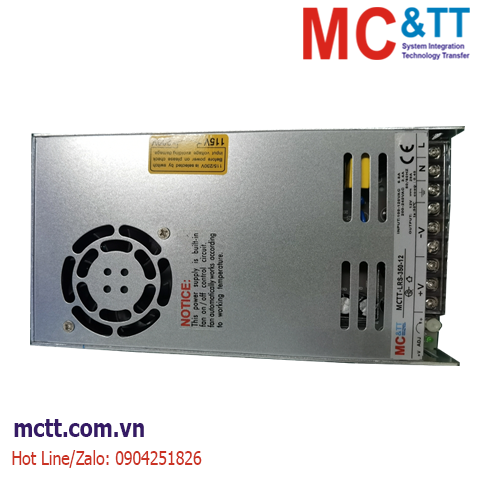

Bộ đổi nguồn tổ ong 220VAC sang 12VDC, 350W, 29A MCTT-LRS-350-12

Chia sẻ

Thương hiệu: MCTT Loại: LRS-350

Tình trạng: Còn hàng

Mã sản phẩm: MCTT-LRS-350-12

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Bộ đổi nguồn tổ ong 220VAC sang 12VDC, 350W, 29A MCTT-LRS-350-12

Features:

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage/ Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability

OUTPUT
Model	MCTT-LRS-350-12
DC Voltage	12V
Rated Current	29A
Current Range	0~29A
Rated Power	348W
Ripple&Noise	150mVp-p
VoltageAdj. Range	10~ 13.8V
Voltage Tolerance	±1.5%
Line Regulation	±0.5%
Load Regulation	±1.0%
Setup,Rise Time	1300ms, 50ms/230VAC 1300ms, 50ms/115VAC at full load
Hold Up Time	16ms/230VAC 12ms/115VAC at full load
INPUT
Voltage Range	100 ~ 120VAC / 200 ~ 240VAC selected by switch 254 ~ 370VDC (switch on 230VAC)
Frequency Range	47 ~ 63Hz
Efficiency	85%
AC Current	6.8A/115VAC 3.4A/230VAC
Inrush Current	60A/115VAC 60A/230VAC
Leakage Current	<2mA / 240VAC
PROTECTION
Over Load	110 ~ 140% rated output power
Over Load	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	13.8~16.2V
Over Voltage	Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over temperature	Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp.	-20 ~ +70℃ (Refer to “derating curve”)
Working Humidity	20 ~ 90% RH non-condensing
StorageTemp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY
Safety Standards	UL60950-1 approved
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
OTHERS
Dimension	21511530mm (LWH)
Weight	0.76Kg
Packing	15pcs/carton/12.4kg/0.78CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
