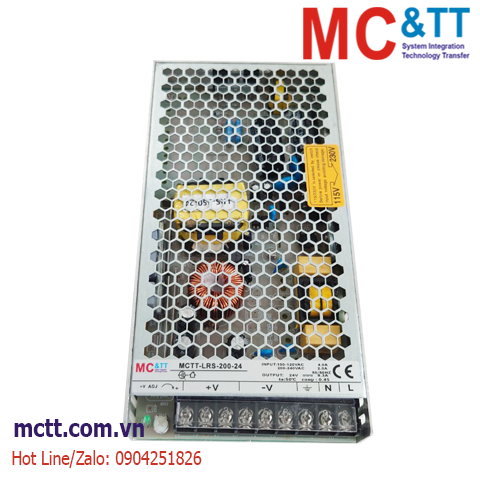

Bộ đổi nguồn tổ ong 220VAC sang 24VDC, 200W, 8.8A MCTT-LRS-200-24

Chia sẻ

Thương hiệu: MCTT Loại: LRS-200

Tình trạng: Còn hàng

Mã sản phẩm: MCTT-LRS-200-24

Bộ đổi nguồn tổ ong 220VAC sang 24VDC, 200W, 8.8A

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Bộ đổi nguồn tổ ong 220VAC sang 24VDC, 200W, 8.8A MCTT-LRS-200-24

MCTT-LRS-200 series is a 200W single output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of MCTT-LRS-200 that the whole series operates from -25 ~ 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. MCTT-LRS-200 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as UL60950-1. MCTT-LRS-200 series serves as a high price-to-performance power supply solution for various industrial applications.

Features:

AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage/ Over temperature
Cooling by free air convection
1U low profile
LED indicator for power on
100% full load burn-in test
High operating temperature up to 70℃
High efficiency, long life and high reliability
1 years warranty

Specifications

Model		MCTT-LRS-200-5	MCTT-LRS-200-12	MCTT-LRS-200-24	MCTT-LRS-200-36	MCTT-LRS-200-48
Output	DC Voltage	5V	12V	24V	36V	48V
	Rated Current	40A	17A	8.8A	5.9A	4.4A
	Current Range	0~40A	0~17A	0~8.8A	0~5.9A	0~4.4A
	Rated Power	200W	204W	211W	212.4W	211W
	Ripple & Noise	150mVp-p	150mVp-p	150mVp-p	200mVp-p	200mVp-p
	Voltage Adj. Range	4.5~5.5V	10~ 13.8V	21.6~28.8V	32~39.6V	43.2~52.8V
	Voltage Tolerance	±3%	±1.5%	±1%	±1%	±1%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±2%	±1%	±0.5%	±0.5%	±0.5%
	Setup, Rise Time	1300ms, 50ms/230VAC 1300ms, 50ms/115VAC at full load
	Hold Up Time	16ms/230VAC 12ms/115VAC at full load
Input	Voltage Range	90 ~ 132VAC/ 180~264VAC by switch 240~370VDC (switch on 230VAC)
	Frequency Range	47 ~ 63Hz
	Efficiency	87%	87%	89.5%	89.5%	90%
	AC Current	14A/115VAC 2.2A/230VAC
	Inrush Current	Cold start, 60A at 230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110 ~ 140% rated output power
	Over Load	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	115%~145% rated output voltage
	Over Voltage	Protection type: Shut down and latch off o/p voltage, re-power on to recover

Environment	Working Temp.	-25 ~ +70℃ (Refer to “Derating Curve”)
	Working Humidity	20 ~ 90% RH non-condensing
	Storage Temp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
	Temp. Coefficient	±0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Safety	Safety Standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
	EMC standards	Design refer to EN55022 class A
Others	Dimension	21511530mm (LWH)
	Weight	0.66Kg
	Connection	9P/9.5mm pitch terminal block
Note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
