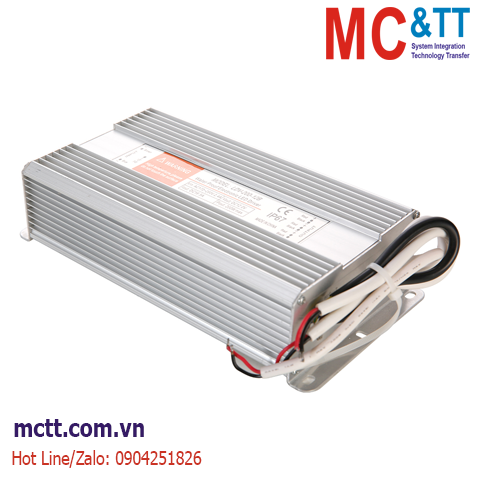

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ đổi nguồn đèn LED chống nước MCTT-LDV-200-24 200W, 24VDC, 8.3A
200W Single Output Waterproof Switching Power Supply LDV-200 series
Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
1 years warranty
| SPECIFICATION | |||
| OUTPUT | |||
| Model | LDV-200-12 | LDV-200-24 | LDV-200-36 |
| DC Voltage | 12V | 24V | 36V |
| Rated Current | 16.5A | 8.3A | 5.5A |
| Current Range | 0-16.5A | 0-8.3A | 0-5.5A |
| Rated Power | 198W | 199W | 198W |
| Ripple & Noise | 150mVp-p | 200mVp-p | 200mVp-p |
| Voltage Tolerance | ±1% | ±1% | ±1% |
| Inlet Stability | ±0.5% | ±0.5% | ±0.5% |
| Load Stability | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise, Hold Up Time | 200ms,20ms,30ms/230VAC | ||
| INPUT | |||
| Voltage Range | 180～264 VAC 47～63Hz；255～373VDC | ||
| AC Current | 1.5A/230VAC | ||
| Efficiency | 82% | 84% | 85% |
| Inrush Current | Cold-start current 40A/230VAC | ||
| PROTECTION | |||
| Over Load | 105%~135% | ||
| Protection：Hiccup mode, recovers automatically after fault condition is removed | |||
| Over Voltage | 30~32V | 42~44V | |
| Protection：Hiccup mode, recovers automatically after fault condition is removed | |||
| High Tem. | ≥85℃ | ||
| Protection：cut off the output, recovers automatically after fault condition is removed | |||
| ENVIRONMENT | |||
| Working Temp., Humidity | -10℃~+60℃,20%~90%RH | ||
| Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | ||
| Temp. Coefficient | ±0.03%/℃(0-50℃) | ||
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | ||
| SAFETY | |||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| STANDARD | |||
| Safety Standard | EN61347-1 EN61347-2-13 IP67 | ||
| EMC Standard | EN55015 EN61547 EN61000-3.4 CLASSB | ||
| OTHERS | |||
| Dimension | 215*69*43（L*W*H） | ||
| Weight | 1.3Kg | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||
