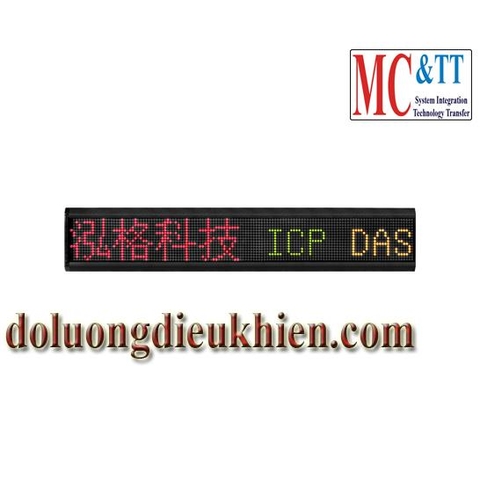

Màn hình LED kết nối Web ICPDAS EKAN-MD104-W

Chia sẻ

Thương hiệu: ICP DAS Loại: Đang cập nhật

Tình trạng: Còn hàng

Mã sản phẩm: EKAN-MD104-W

Màn hình LED kết nối Web ICPDAS EKAN-MD104-W, Web-Enabled LED Display

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Model: EKAN-MD104-W

EKAN-MD104-W Series
Web-Enabled LED Display

Easy to install and easy to use, the ICP DAS EKAN-MD104 Web-enabled LED Display includes a built-in web server that allows you to embed live messages in a web page. Sign confi guration is executed via a web browser (Internet Explorer, Firefox, Chrome, etc.) where you can defi ne IP settings, regular and instant messages, all without having to install any software. You can even send dynamic messages, so you can control your display from anywhere that has an internet connection, saving you both time and money.

Built-in Web Server
The built-in web server provides user-friendly interface to simplify the confi guration. Display your messages from a live source or from a central location.

back

Core
CPU	32-bit ARM
Flash	Typical 100,000 erase/program cycles (Use ring technology, more than 1 million erase/program cycles)
Watchdog Timer	Yes
Communication Interface
Ethernet port	10/100Base-TX (Auto-negotiating, Auto_MDIX, LED indicators)
Dimensions
Housing (L x H x D)	724 mm x 115.3 mm x 50 mm
Display Area (L x H)	608 mm x 76 mm
Display Weight	1950 g
Display Array	16 rows x 128 columns
Feature
Pixel Color	Red, Green, Amber
Character Sets	Unicode
Character Array	Unicode (half-width Characters) : 16 x 8 matrix (Depends on the character) Unicode (wide-shaped character) : 16 x 16 matrix
Pixel Size (Diameter)	0.4 cm
Center-to-Center Pixel Spacing	0.4 cm
Power
Input Voltage Range	+10 ~ 30 VDC
Isolation	5 ~ 15 W
Environment
Operating Temperature	-10 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	10 ~ 90% RH, Non-condensing

back

Unicode
10/100 Ethernet Included
Web Server Installed with Real-time Remote Access to the Display
Three-color LED
Dynamic Entry and Exit Effects
Real-time Messaging
Built-in Watchdog Timer that Helps Minimize Interruptions in Harsh Environments
Displays Multiple Languages

back

EKAN-MD104 Display revolutionizes the Factory Automation Industry
As a manager, it is not easy to effectively communicate with your employees, especially when the factory environment is so noisy and the working area is so large. Our EKAN-MD104-M/W display is an excellent choice for helping the manager to communicate with his/her employees in real time. The EKAN-MD104-M/W display can be used to provides an Ethernet interface that can be connected to your manufacturing systems. It displays "Must Know" production information. Relevant and important mission- critical data can be disseminated not just to employees at remote workstations, but also to the entire production line team.

back

The EKAN-MD104-W Web-Enabled LED Display has a built-in Web configuration page with a uses friendly interface, making it simple to configure the EKAN-MD104-W Web-Enabled LED Display with using a standard web browser.
No extra tools or utilities are needed to configure and control the EKAN-MD104-W Web-Enabled LED Display.
