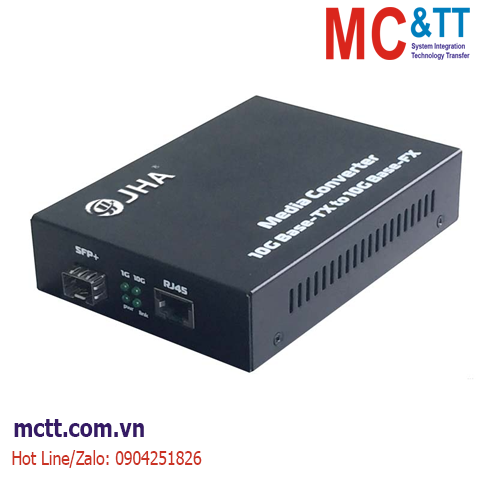

Bộ chuyển đổi quang điện 1 cổng Gigabit Ethernet + 1 1G/10G Quang SFP+/XFP JHA TECH JHA-T11

Bộ chuyển đổi quang điện 1 cổng Gigabit Ethernet + 1 1G/10G Quang  SFP+/XFP JHA TECH JHA-T11

Introduction

This product is high-performance 10G optical media converter , Using Optical – Electrical – Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

Features

◆Support Jumbo Frame

◆Transparent Transport and very low delay

◆Connection between fiber to copper or fiber to fiber 10G Ethernet equipment

◆Can be applied in Telecommunication room, R&D laboratory, Data center, etc

◆Support ITUT prescribed DWDM/CWDM wavelength

◆Support hot plugging

◆Full State Led display

◆Easy installation

◆Supports 3R (Re-generation, Re-timing, Re-shaping) Performance

Dimension

Specification

◆Protocols:  IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

◆Maximum Packet Forwarding Rate: 14,880,950/S

◆Interface Type: RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP

◆Connector: UTP: RJ-45, 1G/10Gbps;  Fiber: SFP+ or XFP

◆Cable :

UTP cable: Cat 6a (the max distance up to 100m)

Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m)

singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)

◆Power:  AC 220V(170-260V) 50Hz;  DC 5V，3A

◆Ambient temperature：0 ～ +50℃

◆Storage temperature：-20 ～ +70℃

◆Humidity：5% ～ 90%

◆Dimensions：External Power：30 (high) x 100 (width) x140 (length) mm

Order Information
