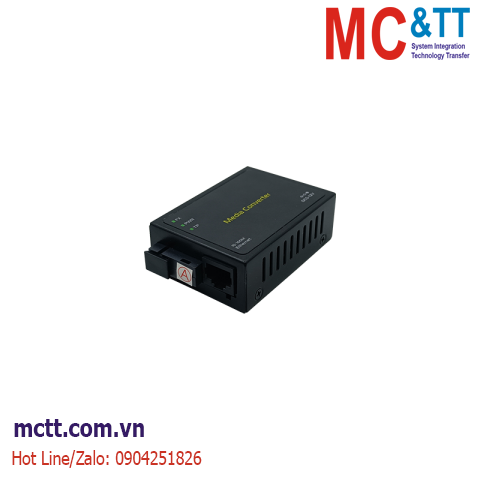

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi quang điện 1 cổng Ethernet + 1 Quang (Single fiber, Single Mode, 20KM, SC/ST/FC/LC) JHA TECH JHA-F11MW-20B
Introduction
JHA-F11M series is a miniature 10/100M self-adaptive Fast Ethernet fiber optic transceiver, with one 100M optical port and one 10/100Base-TX self-adaptive Ethernet RJ45 interface. The product design complies with the Ethernet standard, adding lightning protection and anti-static protection measures, a wide range of operating temperature from -20°C to +70°C, and stable and reliable performance. The device can be widely used in special environments, and is easy to be implanted inside the device, as well as special scenarios where the installation environment is small. And reliable performance, to ensure stable transmission.
Features
Dimension
Specification
|
Operating standards |
IEEE802.3u、10/100Base-TX and 100Base-FX |
|
MAC addresses table |
1K |
|
Data buffer |
1M |
|
Connectors: UTP Connector |
RJ-45,10/100Mbps;Fiber Connector: SC 100Mbps |
|
Cable |
UTP: Cat. 5 UTP cable (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 90km） |
|
Flow Control |
Full Duplex: IEEE802.3x
Half Duplex: back pressure |
|
LED |
Power, FX, TP. |
|
Power Requirement |
DC 5~12V |
|
Ambient Temperature |
0 ～ 70℃ |
|
Humidity |
5 ～ 90% |
|
Size |
69×50×24mm |
|
LED Indicator |
PWR:power supply FX LINK/ACT:optical fiber connection/action TP:network port full duplex/half duplex mode TX LINK/ACT:electrical port connection/action 100:electrical port 100/10M transmission rate) FX:with/without optical signal |
Order Information
|
Model No. |
Description of Goods |
|
JHA-F11MW-20A |
10/100M Single-mode, Single Fiber, 20Km, 1310nm, SC/ST/FC/LC Connector |
|
JHA-F11MW-20B |
10/100M Single-mode, Single Fiber, 20Km, 1550nm, SC/ST/FC/LC Connector |
