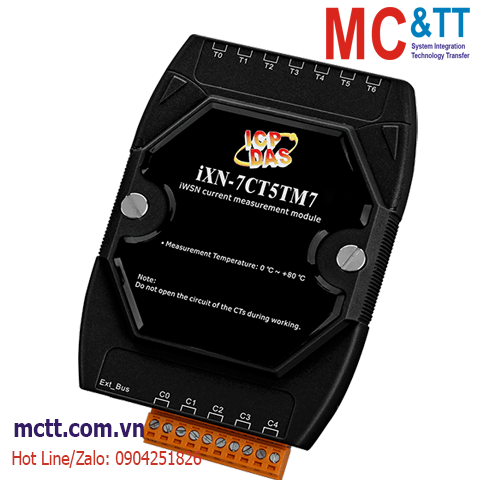

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule đo dòng không dây iWSN 5 kênh đầu vào CT ICP DAS iXN-7CT5TM7 CR
Feature
Introduction
In order to upgrade the flexibility and expansibility of iWSN sensing module, the iXN expansion module is developed to connect to the iWSN sensing module. By means of iXN expansion modules, the iWSN sensing module can offer more current and temperature measurement channels. The iXN expansion module is energized by iWSN sensing module so that there is no external power supply needed. For convenient setting up and maintaining the application, the iXN expansion module provide removable screwed terminal block, wall-mount mechanism and magnet adsorption for installation, and also allows connecting different measurement range of CTs to fit various applications. More kinds of IO interface will be designed to rich the iWSN functionalities and unleash the power of iWSN sensing modules.
Application
Specifications
| Temperature Measurement | |
|---|---|
| Channels | 7 |
| Range | 0 °C ~ +80 °C |
| Accuracy | ±2 °C |
| Installation | Wall-mount or magnet adsorption |
| CT | |
|---|---|
| Split-core CT Channels | 5 |
| Split-core CT Type | Φ16mm (100A), Φ24mm (200A), or Φ36mm (400A); 8 m wire |
| Input Voltage | Maximum 500VAC, 60 Hz |
| Accuracy | ±3% or ±0.3A |
| Power | |
|---|---|
| Consumption | 1-sec Tx Duty: 21 A 10-sec Tx Duty: 13 A 30-sec Tx Duty: 12 A 60-sec Tx Duty: 12A |
| Input Type | iWSN sensing module provides power through the audio line. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 115 x 35 (W x L x H) |
| Installation | DIN-rail or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
(*1) The minimum current required in the AC cable for balancing module's power charging and power consumption.
Download
Ordering Information
| iXN-7CT5TM7 CR | iXN Extension Module with 5-ch CT Input and 7-ch Thermistor Input (RoHS) (Asia Only) (Optional 100A/200A/400A CT) |
