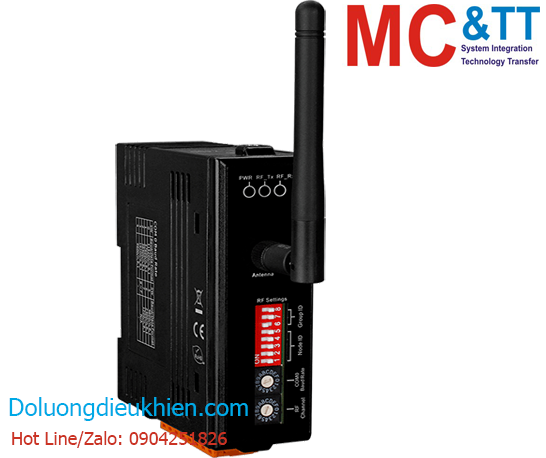

iWSN-2200-R1 CR iWSN Data Concentrator with 1-port RS-485 and 1-Channel Relay Output (RoHS) (Asia Only)
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000điWSN-2200-R1 CR: Bộ quản lý năng lượng tập trung (iWSN Data Concentrator) 1 cổng RS-485+ 1 kênh đầu ra Relay
Features
Introduction
iWSN-2200-R1 is an iWSN wireless data contractor, it supports one 433MHz wireless communication interface and one RS-485 communication interface. The module supports Modbus RTU protocol slave, the main function can receive and buffer 31 iWSN sensor’s data by wireless, and user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. In wireless interface, the module supports 16 wireless channels and 8 groups ID by rotary switch and DIP switch setting, and it can automatically control relay output for specific wireless packets that such as emergency distress packages, so user can easy to use the them to divide and manage the wireless network of 433MHz frequency.
Application
Specification
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 1kV |
| ESD (IEC 61000-4-2) | +/- 4kV Contact |
| Surge (IEC 61000-4-5) | +/- 1kV |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x RF_Tx 1 x RF_Rx |
| Antenna | |
|---|---|
| Connector | RP-SMA Male (Plug) |
| Dimensions (mm) | 10 x 108 (Ø x L) |
| Type | 0 dBi, Omni-Directional |
| Relay Output | |
|---|---|
| Channels | 1 (Form A) |
| Type | Power Relay, (SPST N.O.) |
| Contact Rating | 5A @ 250VAC 5A @ 30VDC |
| Operate Time | 10ms (Max.) |
| Release Time | 5ms (Max.) |
| Electrical Endurance | 2 × 10^7 ops. |
| Mechanical Endurance | 1 × 10^5 ops. |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps, N81 |
| Protocol | Modbus RTU |
| Node Address | 1 to 31 |
| Power | |
|---|---|
| Consumption | 0.5W Max. |
| Input Type | +10 to +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 108 x 84 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
Download
Ordering information
| iWSN-2200-R1 CR | iWSN Data Concentrator with 1-port RS-485 and 1-Channel Relay Output (RoHS) (Asia Only) |
