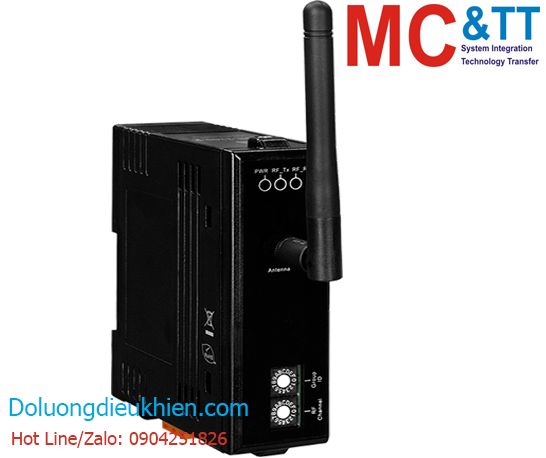

iWSN-2200-E CR: Bộ quản lý năng lượng tập trung (iWSN Data Concentrator) 1 cổng Ethernet

iWSN-2200-E CR: Bộ quản lý năng lượng tập trung (iWSN Data Concentrator) 1 cổng Ethernet

Features

• 433 MHz Radio Frequency.
• 16 RF Channels.
• Supported Modbus TCP protocol (Slave)
• Supported data buffers of 31 iWSN sensors.
• ESD Protection: +/- 4 kV for contact terminal.
• Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a photocoupler.
• DIN-Rail Mountable.
• Operating Temperatures: -25 °C ~ +75 °C.

Introduction

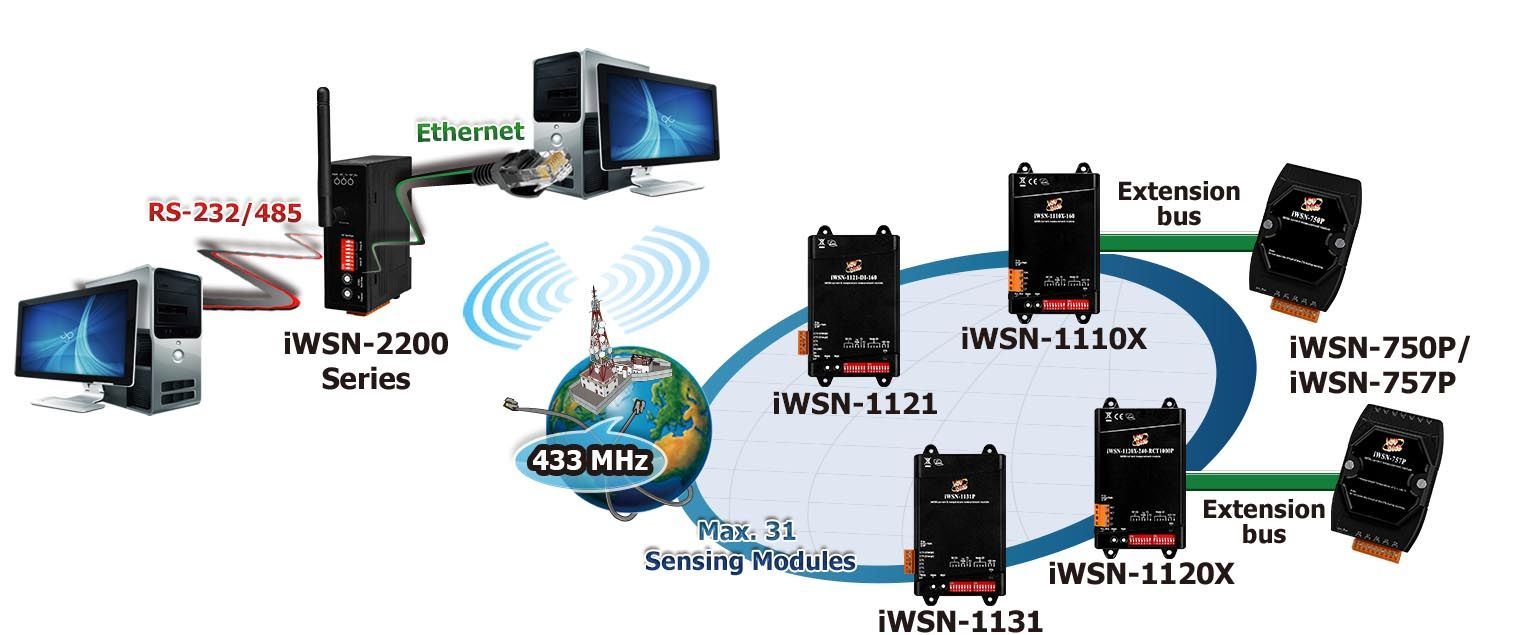

iWSN-2200-E is an iWSN wireless data contractor, it supports one 433MHz wireless communication interface and one Ethernet communication interface. The module supports Modbus TCP protocol slave, the main function can receive and buffer 31 iWSN sensor’s data by wireless, and the user can transmit Modbus TCP commands to read the sensor’s data by Ethernet interface. In wireless interface, the module supports 16 wireless channels and 8 groups ID by rotary switch setting, the user can easy to use them to divide and manage the wireless network of 433MHz frequency.

Application

Specification

Download

Data sheet

Documents

Ordering information
