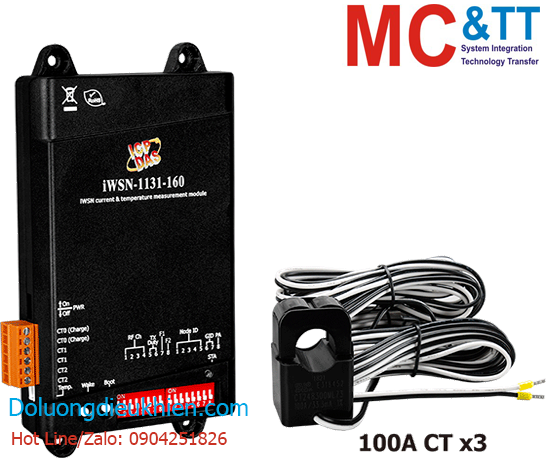

iWSN-1131-160 CR: iWSN Current Sensing Module with 3-ch CT Input and 1-ch Thermistor Input (Asia Only)

Chia sẻ

Thương hiệu: ICP DAS Loại: iWSN Sensor

Tình trạng: Còn hàng

Mã sản phẩm: iWSN-1121-DI-360 CR

iWSN-1131-160 CR iWSN Current Sensing Module with 3-ch CT Input and 1-ch Thermistor Input (RoHS) (Included 100A CT x3) (Asia Only)

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

iWSN-1131-160 CR: iWSN Current Sensing Module with 3-ch CT Input and 1-ch Thermistor Input (Asia Only)

Features

Self-powered by built-in a chargeable Li-ion battery.
Split-core current transformer (CT) for easy installation.
Energy harvest from the CT induced electricity.
Uses 433 MHz radio frequency for communication.
16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks.
Supports maximum 100A CT.
Offers wall-mount mechanism and magnet for installation.

Introduction

The iWSN series sensing module is a self-powered module for AC current, digital input and temperature measurement. It can harvest the demand electricity from CT induced current so that there is no necessary to supply the power line for power supply. By means of sub-1G RF communication interface, iWSN series can approach to the real wireless deployment. The diversified IO interface, such as split-core CT, Rogowski coil, NTC thermistor and dry contact DI, provides users more choices for various applications. Considering the maintenance and installation, the iWSN sensing module uses the DIP switch and rotary switch for configuration. Through the flexibility of the expansion interface and good price performance, the iWSN sensing module can be widely used in the application of saving power, big data analysis, and predict maintenance.

Application
