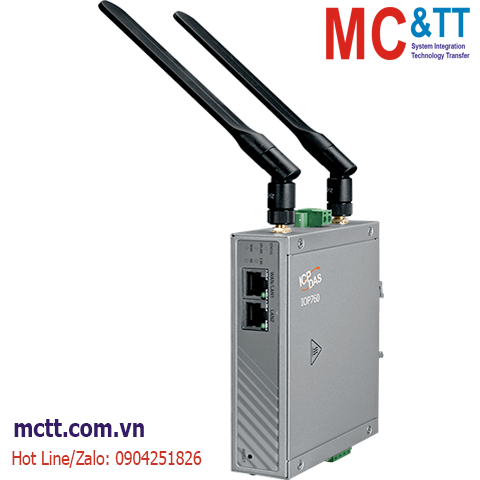

Bộ chuyển đổi Ethernet/UART sang Wi-Fi ICP DAS IOP760 CR

Chia sẻ

Thương hiệu: ICP DAS Loại: Bộ chuyển đổi Ethernet/UART sang Wi-Fi

Tình trạng: Còn hàng

Mã sản phẩm: IOP760 CR

Ethernet/UART to Wi-Fi Converter (with category A plug type) (RoHS)(Asia Only)

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Bộ chuyển đổi Ethernet/UART sang Wi-Fi ICP DAS IOP760 CR

Tính năng

Wi‐Fi Uplink or Ethernet WAN Connection.
One RS-232/485 for Modbus RTU Connection.
IEEE 802.11a/b/g/n/ac Wi-Fi Compliance.
Support Wi-Fi dual bands 2.4/5 GHz
Two LAN Port for Linking Local Ethernet Devices.
One DI/One DO For Device Triggering or Event Reporting
Designed by solid and easy‐to‐mount metal body

Giới thiệu

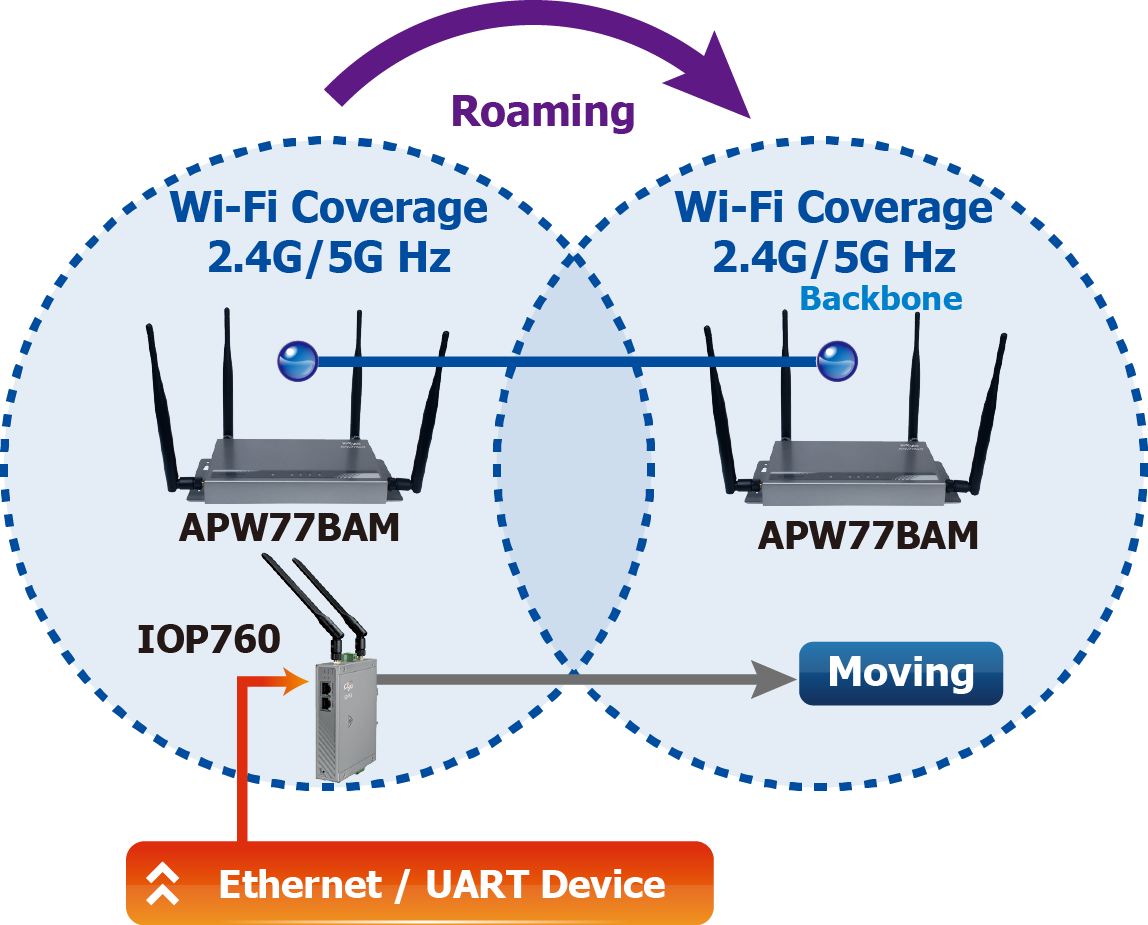

The IOP760 is absolutely the right choice for wireless M2M (Machine-to-Machine) applications. With built-in high performance IEEE802.11a/b/g/n/ac compliant Wi-Fi uplink or multi-mode access point function. IOP760 is a wireless converter. The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, IOP760 can connect to another stronger one via the roaming function. The IOP760 has two Ethernet interfaces that can connect to two Ethernet devices. All the Ethernet devices exchange data via the IOP760. In the UART communication, data can be sent directly or formed by Modbus protocol.

Ứng dụng

Thông số kỹ thuật

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11a/b/g/n/ac
Encryption	WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Data Transmission Rate	2.4 GHz:300 Mbps(MIMO 2T2R) 5 GHz:866 Mbps(MIMO 2T2R)
Client	Max. 10 Clients (AP mode)
Channels	2.4 GHz:1~11 5 GHz:36/40/44/48;149/153/157/161/165
Antenna	5 dBi 2.4/5 GHz

Digital Input
Channels	1
Type	Wet Contact
ON Voltage Level	3.3 ~ 30 VDC
OFF Voltage Level	3 VDC Max.

Relay Output
Channels	1
Contact Rating	30V / 1A

COM Ports
Ports	1 x RJ10( RS-232/RS-485)
Baud Rate	RS-232: 9600 / 19200 / 38400 / 57600 / 115200 RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800
Data Bit	43684

Ethernet
Ports	2 x RJ45 FE

Power
Input Range	+9~ 48 VDC

Mechanical
Dimensions (mm)	31 x 99 x 131 (W x L x H)(without Mounting kit) 31 x 108 x 131 (W x L x H)(with DIN Rail kit) 167 x 99 x 39 (W x L x H)(with Bracket kit)
Installation	DIN-Rail Bracket
