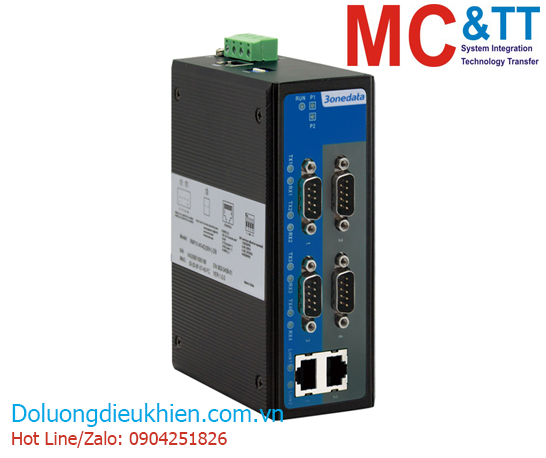

Bộ chuyển đổi 4 cổng RS-232/485/422 sang 2 cổng Ethernet 3Onedata INP314T-4D(3IN1)-DB-2P(12-48VDC)

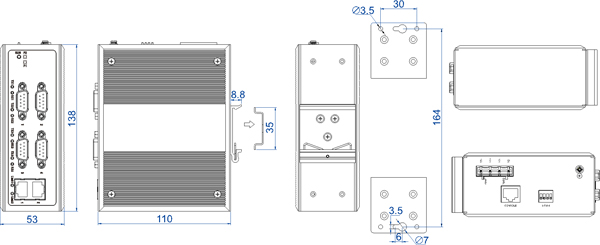

INP314T-4DI(3IN1)-DB-2P(12-48VDC) is serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 4 3IN1 serial ports to 2 100M Ethernet copper ports which supports electromagnetic isolation. It adopts rail or wall mounting to meet the requirements of different application scenes.

Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.

Features and Benefits

 Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups

 Support 300bps-921600bps line speed and non-blocking communication

 Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes

 Support cross-gateway and cross-router communication

 Support multiple hosts polling mode, which allows multiple hosts to access the same serial port

 Support delimiter matching communication, achieving various demands for serial port packaging

 Support FIFO, compatible with various old type terminal devices

 Support IP address and MAC address filtering, which can achieve accurate access control easily

 Support graded user management to implement humanized authority management

 Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance

 Support RTS/CTS, DTR/DSR and XON/XOFF flow control

 Compatible with various virtual serial port management software

 Support virtual serial port drive access mode and automatic connection recovery after network interruption

 Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation

 Support standard TCP/IP SOCKET application access

 TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously

 UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously

 Support multiple configuration forms like Windows configuration tool, TELNET and WEB
