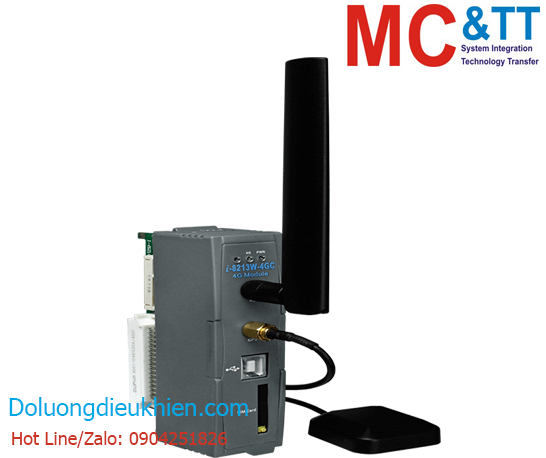

Module LTE (4G) + GPS cho bộ lập trình nhúng PAC ICP DAS I-8213W-4GC CR

Module LTE (4G) + GPS cho bộ lập trình nhúng PAC ICP DAS I-8213W-4GC CR

Features

• Support FDD LTE B1/B3/B5/B7/B8/B20 and WCDMA 850/900/2100 MHz and GSM 850/900/1800/1900 MHz.
• 4 KV ESD Protection.
• Designed for FDD LTE, WCDMA, GPRS and SMS Applications.
• Supports TCP Server, TCP Client, UDP Client Connection stack from 4G, 3G or GPRS.
• Supports Standard AT Commands.
• LED Indicators for Power and GSM Indication.
• High Reliability in Harsh Environment.
• Supports 32-channels GPS and NMEA v0183 v3.01.
• PPS: 100 ms pulse output/sec for precise timekeeping and time measurement.
• Supports XP-8000, WinPAC-8000, LinPAC-8000, ViewPA.

Introduction

The I-8213W-4G series are industrial 4G LTE modules with GPS function that work on frequencies of FDD LTE B1/B3/B5/B7/B8/B20(I-8213W-4GE) or FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41(I-8213W-4GC). WCDMA 850/900/2100 MHz and GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz. These modules utilize the 4G, 3G or GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. I-8213W-4G has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of I-8213W-4G, the systems can be SMS, GPRS and 4G connection applications with our PAC series like WinPAC-8000, LinPAC-8000 or XP-8000.
