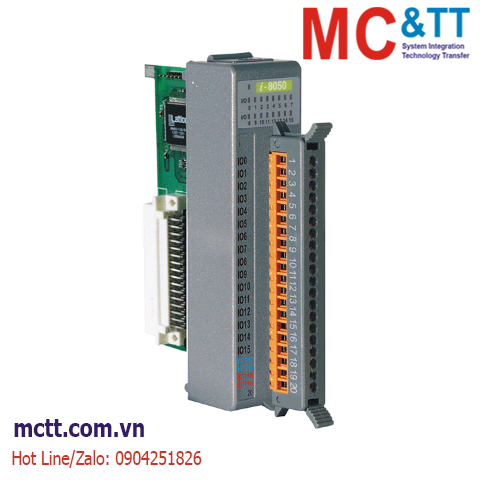

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 16 kênh DO hoặc DI ICP DAS I-8050-G CR
I-8050-G CR đã dừng sản xuất và được thay thế bằng I-8050W-G CR
Feature
• 16-channel Universal Digital Input/Digital Output
• Photocouple-isolation protection
• ±4 kV ESD Protection
• 3750 VDC Intra-module Isolation
Introduction
I-8050 is a 16-channel Universal Digital I/O module. Each channel can be configured to be a Digital Input or Digital Output by programming. Each of which features Photocouple-isolation. I-8050 supports Sink Type Output with short-circuits protection. There are option for power on value and safe value for your consideration. All channels have ±4 kV ESD protection and 3750 VDC intramodule isolation are standard.
Application
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Digital Input | |
|---|---|
| Channels | One Common for All 16-channel |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink |
| ON Voltage Level | +3.5 ~ +30 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Input Impedance | 3 kΩ, 0.25W |
| Digital Output | |
|---|---|
| Channels | One Common for All 16-channel |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/Channel |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8050-G CR | 16-ch Universal Digital I/O Module (Gray Cover) (RoHS) |
