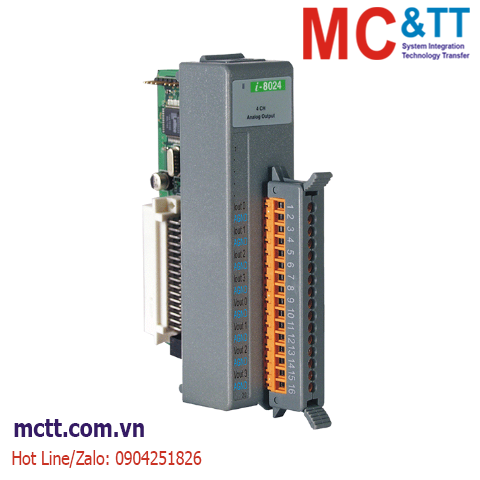

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 4 kênh đầu ra AO ICP DAS I-8024-G CR
I-8024-G CR đã dừng sản xuất và được thay thế bằng I-8024W-G CR
Feature
• 4-channel Voltage or Current Output
• Individual Channel Configuration
• ±4 kV ESD Protection
• 2500 VDC Intra-module Isolation
Introduction
The I-8024 is a 14-bit Analog Output Module, which offers 4 single-ended analog output channels. Each channel can be programmed to an individual output range of ±10 VDC or 0 ~ +20 mA. The I-8024 provides RF immunity level matching that defined by IEC 61000-4-3 standard, together with ±4 kV ESD protection as well as 2500 VDC intra-module isolation.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Output | |
|---|---|
| Channels | 4 Sink |
| Type | Voltage Current |
| Range | ±10 VDC, 0 ~ +20 mA |
| Resolution | 14-bit |
| Accuracy | Voltage: ±0.1% of FSR Current: ±0.2% of FSR |
| Zero Drift | Voltage: ±30 μV/ °C Current: ±0.2 μA/ °C |
| Span Drift | ±20 ppm/°C |
| Readback Accuracy | ±1% of FSR |
| Voltage Output Capability | 10 VDC @ 5 mA |
| Current Load Resistance | External +24 VDC: 1050 Ω |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 116 x 88 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-8024-G CR | 4-ch Analog Output Module (Gray Cover) (RoHS) |
