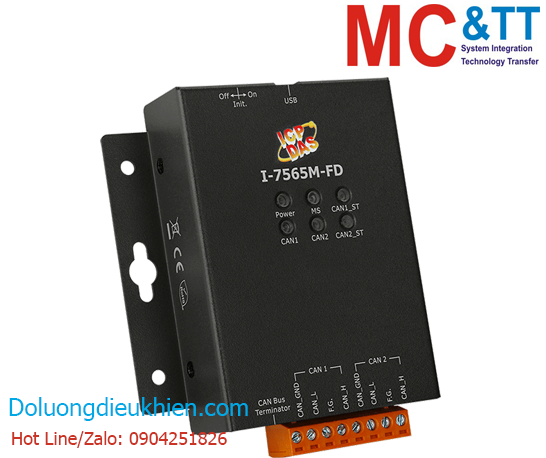

I-7565M-FD CR: Bộ chuyển đổi USB sang 2 cổng CAN/CAN FD Bus

I-7565M-FD CR: Bộ chuyển đổi USB sang 2 cổng CAN/CAN FD Bus

Features

• Compatible with USB 2.0 (High Speed)
• Compatible with the ISO 11898-2 standard
• Compatible with CAN specification 2.0 A/B and FD
• CAN FD support for ISO and Non-ISO (Bosch) standards switchable
• CAN FD bit rates for data field from 100 kbps to 4000 kbps
• CAN bit rates from 10 kbps to 1000 kbps
• Support CAN Bus message filter configuration
• Time stamp resolution 1ms.
• Voltage supply via USB
• Watchdog inside
• Provide PWR, CAN Tx/Rx and CAN status indication LEDs
• Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
• Support firmware update via USB
• Provide utility tool for users module setting and CAN Bus communication testing conveniently
• Provide API library for user program development

Introduction

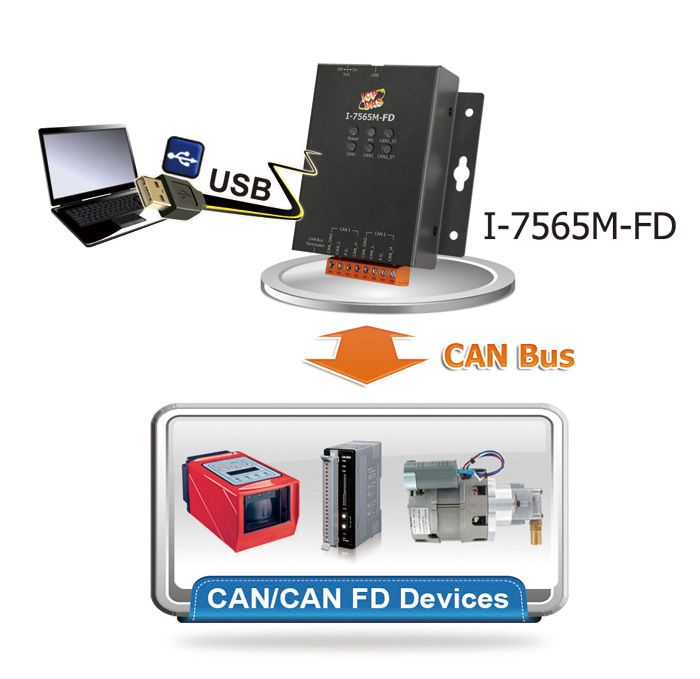

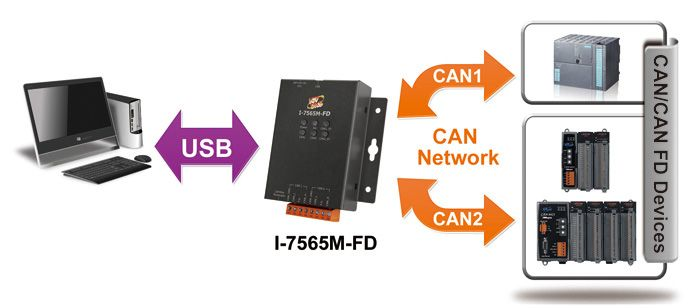

I-7565M-FD is a USB to CAN/CAN FD (CAN with Flexible Data-Rate) converter with two CAN channels. It allows transmitting/receiving CAN/CAN FD frames and supports CAN2.0A/2.0B and CAN FD (ISO/Bosch) specifications and different baud rates for CAN/CAN FD frame. (10 kbps to 1000 kbps for CAN arbitration phase and 100 kbps to 4000 kbps for CAN FD data phase). When connecting I-7565M-FD to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-FD. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The following is the application structure for the USB to CAN/CAN FD module. The PC can be the CAN host, monitor or HMI to access/control the CAN/CAN FD devices through the CAN network by the I-7565M-FD Converter. The module let users to communicate with CAN/CAN FD devices easily from PC with USB interface.

Moreover, we expand the functionalities of tM-7565 for some special application. In pair connection mode, tM-7565 can be used to communicate between two PC via USB. The application architecture may be as follows.

Application

• Control System
• Building Automation
• Factory Automation
• Monitor System
• Vehicle Automation

Specifications
