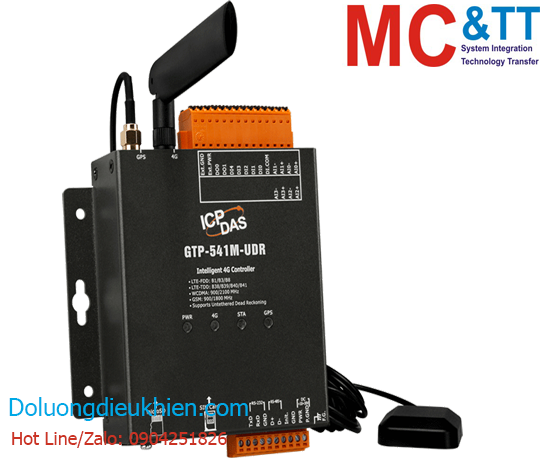

Miễn phí vận chuyển với đơn hàng từ 10.000.000đRTU/RMV/SMS Modem LTE (4G) + GPS +4 kênh AI + 5 kênh DI + 2 kênh DO + RS-232/485 Modbus ICP DAS GTP-541M-UDR CR
Features
Introduction
GTP-541M-UDR is a smart 4-G remote control device with inertial navigation. It is compatible with downward 2G/3G band and can be used with different software interfaces to meet user needs.. 4G remote control device transmits I/O signals to remote management platform through LTE/WCDMA/GPRS. Shunge also provides related software support to help customers quickly build monitoring terminal programs, including M2M RTU Center, VxServer, VxComm and other software.. In addition, users can switch GTP-541M-UDR functions such as ModBusSMS, DIOSMS and RMV by replacing the firmware with SD card to meet different application requirements. The powerful function of GTP-541M can reduce the development cost and time of users, especially suitable for the application of Internet of Things.
Specification
| Software | |
|---|---|
| Service | Virtual COM, RTU, SMS Alarm |
| CPU Module | |
|---|---|
| CPU | ARM Cortex™ A5 processor |
| Storage Expansion | SD Card (Max. 32GB SDHC) |
| Real Time Clock | Provide seconds, minutes, hours, day of week/month, month and year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x PWR 1 x 4G 1 x STA 1 x GPS |
| 2G System | |
|---|---|
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| CSD | GSM Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps |
| Data GPRS | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps |
| Frequency Band | 900/1800 MHz |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 900 MHz) Class 1 (1 W @ 1800 MHz) |
| SMS Format | Sending: UCS2/7bits Receiving: UCS2/7bits |
| 3G System | |
|---|---|
| Data Transmission | DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band | WCDMA 900/2100 MHz |
| Power Class | Class 3(250mW @ WCDMA) |
| 4G System | |
|---|---|
| Data Transmission | LTE(Cat.3) Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps |
| Frequency Band | FDD LTE : B1/B3/B8 TDD LTE : B38/B39/B40/B41 |
| GPS | |
|---|---|
| Protocol | NMEA 0183 |
| Support Channels | 72 |
| Analog Input | |
|---|---|
| Channels | 4 |
| Type | Voltage |
| Range | +10V ~ -10V |
| Resolution | 16-bit |
| Digital Input | |
|---|---|
| Channels | 5 |
| Type | Sink or Source, Isolated channel with common power or ground |
| Wet Contact, ON Voltage Level | +5V~+24V |
| Wet Contact, OFF Voltage Level | +1V Max |
| Digital Output | |
|---|---|
| Channels | 2 |
| Load Voltage | +24 VDC Max |
| Max. Load Current | 100mA Max |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232/485, Non-isolated |
| Baud Rate | 9600、19200、38400、57600 and 115200 bps |
| Power | |
|---|---|
| Consumption | 4.8W ( 200 mA @ 24 VDC) |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 113 x 125 x 34 (W x L x H) |
| Installation | DIN-Rail/ Screw |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Download
Ordering information
| GTP-541M-UDR CR | 4G intelligent remote device with inertial navigation (RoHS) (Asia Only) |
