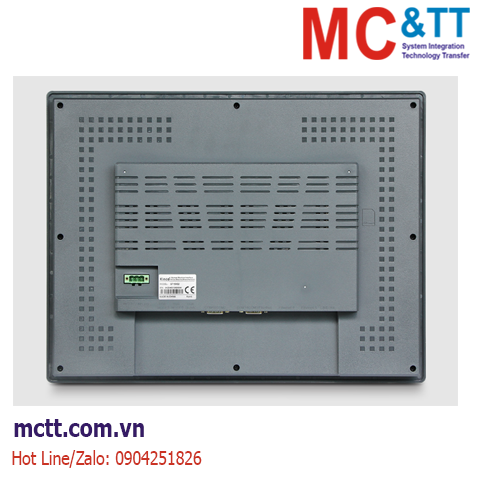

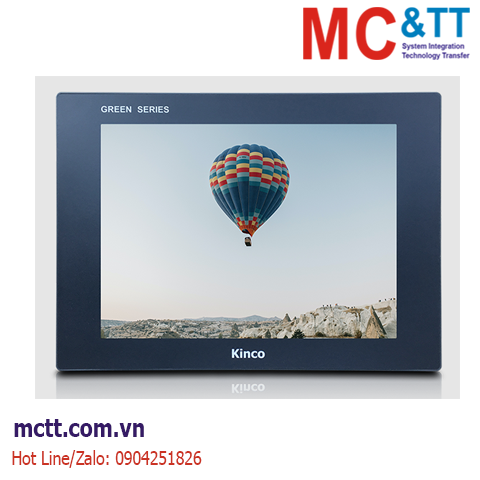

Màn hình cảm ứng HMI 15 inch Kinco GT150E2 (3 COM, 1 USB Host, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 15 inch

Tình trạng: Còn hàng

Mã sản phẩm: GT150E2

15", 1024×768, 16.77M Colors, 2×Ethernet, 1×Micro USB /USB Host, 3×Serial port

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 15 inch Kinco GT150E2 (3 COM, 1 USB Host, 2 Ethernet)

Tính năng

Industrial display: 15 "4:3 scale provides larger display area and clearer highlight
Rich storage: it supports external SD card \ U disk, and can expand up to 256gb
Perfect protection: built in serial port to isolate and isolate power supply to enhance reliability

Thông số kỹ thuật

Model	GT150E2
Performance specification
Display size	15" TFT
Display area	304.13mm(W)x228.10mm(H)
Resolution	1024×768 pixels
Display color	16.7M color
Display angle of view	85/85/85/85(left/right/up/down)
Contrast ratio	800:1
Backlight	LED
Brightness	400cd/m2
Backlight life	50000 hours
Touch Panel	4 wire precision resistance network (surface hardness 4H)
CPU	ARM RISC 32Bit 800MHz
Storage	256MB NAND Flash Memory + 256MB DDR3 Memory
RTC	Built-in real time clock
Extensible memory	1USB Host
Printer port	USB Slave/ Serial port
Program download	USB Slave (Micro USB)/ U disk/ Ethernet
Ethernet	2*10/100M self-adaption
Communication port	COM0: RS232/RS485/RS422, COM1: RS485/RS422, COM2: RS232
Electrical specification
Input power supply	DC10V~DC28V,Built-in isolation power supply
Rated power	16W @24V DC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	Exquisite spraying
Shell material	Engineering plastic
Shape size(mm)	398mm298mm47
Cutout size(mm)	383mm*283
Weight	3 Kg
Environment specification
Operating temperature	-10～55℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification (4208一93)
CE certification	CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V4.1 and above version
