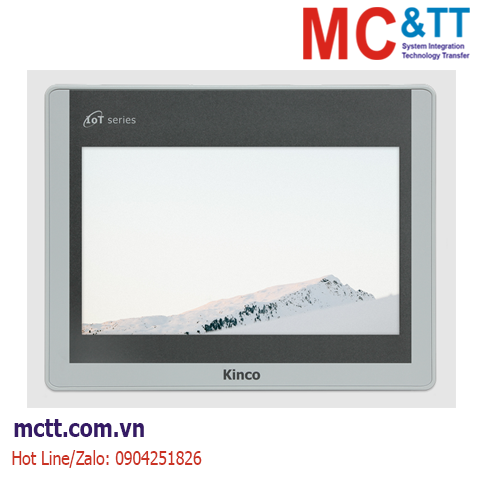

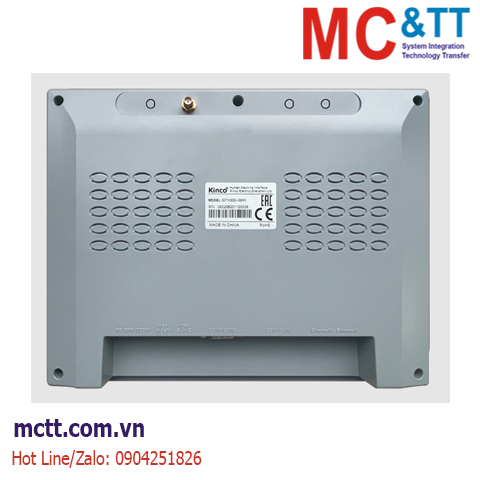

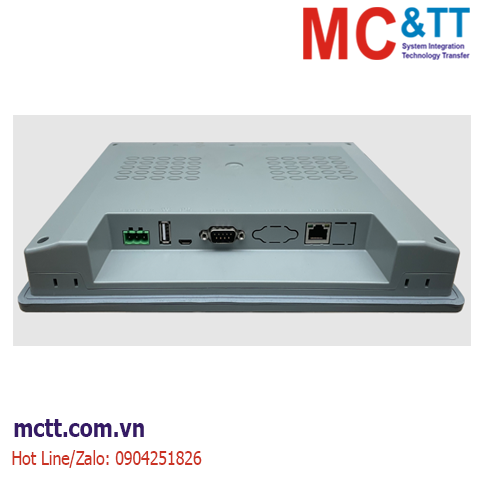

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 10.1 inch Kinco GT100E1 (3 COM, 1 USB Host, Ethernet)
Tính năng
Thông số kỹ thuật
|
Model |
GT100E1 |
|
Performance specification |
|
|
Display size |
10.1" TFT |
|
Display area |
222.72(W)x125.28(H) |
|
Resolution |
1024*600 pixels |
|
Display color |
16.7M color |
|
Display angle of view |
85/85/85/85(left/right/up/down) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
350cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
256MB NAND Flash Memory + 128MB DDR3 Memory |
|
RTC |
Built-in real time clock |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/ Serial port |
| Internetwork |
Ethernet |
| Program download | USB Slave (Micro USB)/ U disk/ Ethernet |
| Ethernet | 1*10/100M self-adaption |
| Communication port | COM0:RS232/RS485/RS422, COM1:RS485/RS422, COM2:RS232 |
|
Electrical specification |
|
|
Input power supply |
DC10V~DC28V,Built-in isolation power supply |
|
Rated power |
5W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
| PCB coating | Yes |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
271*213*38 mm |
|
Cutout size(mm) |
260*202 |
|
Weight |
1.1 Kg |
|
Environment specification |
|
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
CE certification |
CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005 |
|
Software |
|
|
Configuration software |
Kinco DTools V4.1 and above |
Thông tin đặt hàng
10.1″TFT, 1024×600, 1677M Colors, USB Host, Serial port, Ethernet
