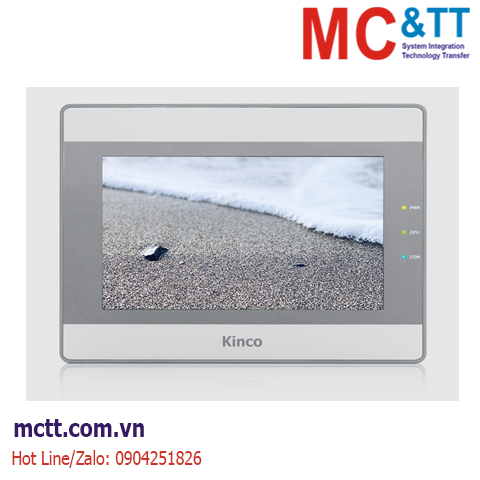

Màn hình cảm ứng HMI 7 inch Kinco GT070E2 (3 COM, 1 USB Host, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 7 inch

Tình trạng: Còn hàng

Mã sản phẩm: GT070E2

7", 16.7M TFT, 1024×600, 3*COM, 2*Ethernet, USB host, isolation and coating protection PCB

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 7 inch Kinco GT070E2 (3 COM, 1 USB Host, 2 Ethernet)

Tính năng

Thông số kỹ thuật

Model	GT070E2
Performance specification
Display size	7" TFT
Display area	154.08mm(W)*85.92mm(H)
Resolution	1024×600 px
Display color	16.7M
Display angle of view	70/70/50/70(left/right/up/down)
Contrast ratio	500:1
Backlight	LED
Brightness	450cd/m2
Backlight life	More than 30000 hours
Touch Panel	4 wire precision resistance network (surface hardness 4H)
CPU	ARM RISC 32Bit 800MHz
Storage	256MB Flash Memory+256MB Memory
RTC	Built-in RTC+32KB
Extensible memory	1 USB Host
Printer port	USB Host/ serial port
Ethernet	2*10/100M adaptable Ethernet interface
Program download	U disk/ Ethernet
COM port	COM0：RS232/RS485/RS422； COM1：RS485/RS422；COM2：RS232
Electrical specification
Rated power	4.2W @24VDC
Input power supply	DC10.8V~DC28V, Built-in isolation power supply
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@ 500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	Exquisite spraying
Shell material	Engineering plastic
Dimensions(mm)	204×150×37(mm)
Cutout size(mm)	192*138 (mm)
Weight	0.6Kg
Environment specification
Operating temperature	0° C ~ 5° C
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification
CE certification	Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V3.3 and above
