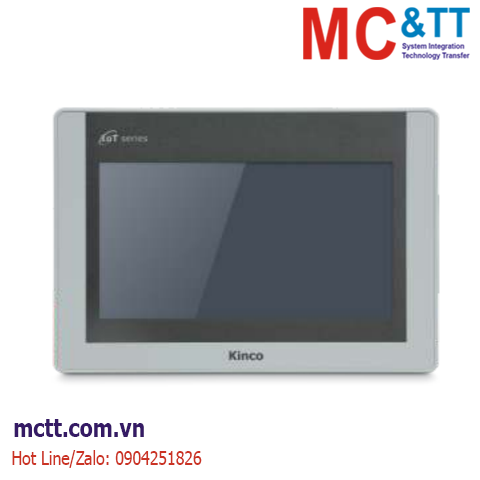

Màn hình cảm ứng HMI 7 inch Kinco GT070E (2 COM, 1 USB Host, Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 7 inch

Tình trạng: Còn hàng

Mã sản phẩm: GT070E

7", 16.7M TFT, 800*480, 2*COM, 1*Ethernet, USB host

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Màn hình cảm ứng HMI 7 inch Kinco GT070E (2 COM, 1 USB Host, Ethernet)

Tính năng

Support Ethernet, built-in 4G & WiFi
Built-in Internet of Things function, support remote service
HMI has the function of remote upload and download
Remote transmission,PLC program upload, download, online debugging, desktop monitoring

Thông số kỹ thuật

Model	GT070E	GT070E-4G	GT070E-WiFi
Performance specification
Display size	7" TFT
Display area	154.08 (W) x 85.92 (H) (mm)
Resolution	800*480 pixels
Display color	16.7M color
Display angle of view	70/70/50/70 (left/right/up/down)
Contrast ratio	500:1
Backlight	LED
Brightness	250cd/m2
Backlight life	More than 30000 hours
Touch Panel	4 wire precision resistance network (surface hardness 4H)
CPU	ARM RISC 32Bit 800MHz
Storage	128MB NAND Flash Memory + 128MB DDR3 Memory
RTC	Built-in real time clock
Extensible memory	1 USB Host
Printer port	USB Host/ Serial port
Internetwork	Ethernet	Ethernet/Cellular 2G/3G/4G	Ethernet/WiFi
Program download	USB Slave (Micro USB)/ U disk/ Ethernet
Cellular and Wireless	None	LTE-FDD Band 1/3/5/8 LTE-TDD Band 38/39/40/41 UMTS Band 1/8 GSM Band 3/8	IEEE802.11 b/g/n 802.11b:max 17dBm 802.11g:max 17dBm 802.11n:max 17dBm
VPN	Support HMI remote upload and download and screen monitoring, support PLC passthrough program upload and download and online debugging
Ethernet	10/100M self-adaption
Communication port	COM0:RS232/RS485/RS422, COM2:RS232
Electrical specification
Input power supply	DC10V~DC28V,Built-in isolation power supply
Rated power	4.2W @24V DC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	None of spraying
Shell material	Engineering plastic
Dimensions(mm)	204mm150mm37mm
Cutout size(mm)	192mm*138mm
Weight	0.5 Kg
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification (4208一93)
CE certification	CE: EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V3.5.0 and above
