Màn hình cảm ứng HMI 7 inch Kinco GR070E (2 COM, 1 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 7 inch

Tình trạng: Còn hàng

Mã sản phẩm: GR070E

7″, 16.77 million color, TFT, 800*480 resolution, 2* COM, 1*USB HOST, 1*MicroUSB, Ethernet. Without cover

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 7 inch Kinco GR070E (2 COM, 1 Ethernet)

Tính năng

The GR series consists of 3 models:GR043, GR070E, GR100E
GR series USB slave port adopts microusb interface
E refers to products with Ethernet port, among which COM1 (rs485-2w) is terminal type

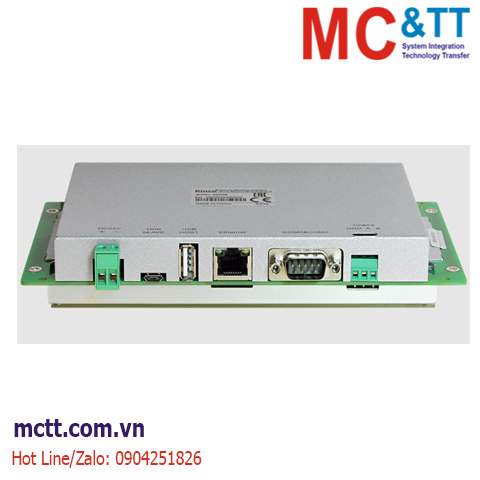

GR series is installed and fixed in the rear, which can perfectly fit the equipment surface and integrate with the equipment
Customers can design their own mask according to their needs, highlighting the grade of equipment.

Thông số kỹ thuật

Performance specification

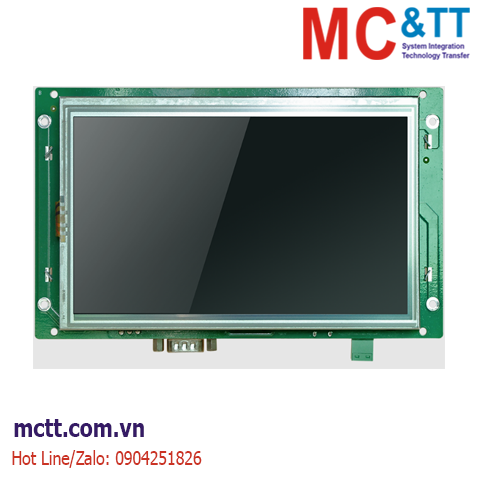

Display size	7" TFT
Resolution	800×480 px
Display color	16.7M color
Backlight	LED
Brightness	250cd/m2
Backlight life	More than 30000 hours
Touch Panel	4-wire precision resistance network (surface hardness 4H)
CPU	ARM RISC 32Bit 800MHz
Storage	128MB NAND Flash Memory+128MB DDR3 Memory
RTC	Built-in
Extensible memory	1 USB Host
Printer port	Serial port/USB
Ethernet	10/100M self-adaption
Program download	Serial port/ USB HOST（Micro USB）/Ethernet
COM port	COM0:RS232/RS485/RS422; COM2:RS232
Electrical specification
Input power supply	DC10V~DC28V
Rated power	3.6W@DC24V
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
Shell material	Metal
Dimensions(mm)	190.4×110×30(mm)
Cutout size(mm)	166×101(mm)
Weight	0.3 Kg
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X,Y,Z direction/hour
Cooling method	Natural air cooling
Certification
Panel protection grade	Conforming to IP65 certification (4208-93)
CE certification	EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V4.1 and above vertion
