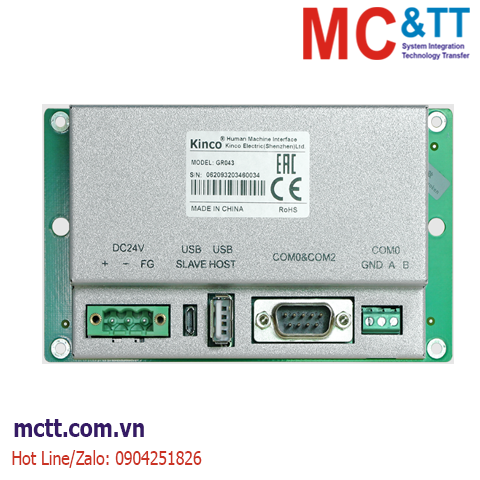

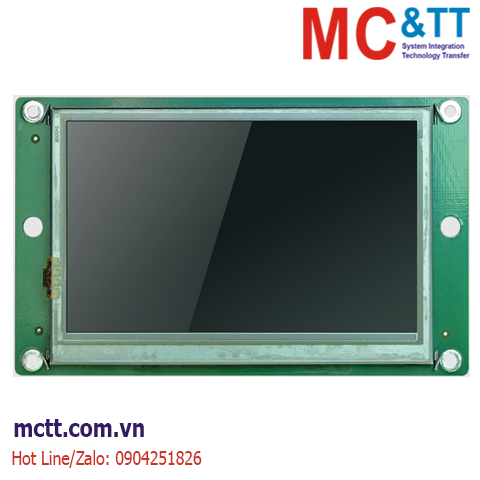

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 4.3 inch Kinco GR043 (2 COM)
Tính năng
Thông số kỹ thuật
|
Performance specification |
|
|
Display size |
4.3" TFT |
|
Resolution |
480×272 px |
|
Display color |
16.7M color |
|
Backlight |
LED |
|
Brightness |
450cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
4-wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
128MB NAND Flash Memory+128MB DDR3 Memory |
|
RTC |
Built-in |
|
Extensible memory |
1 USB Host |
|
Printer port |
Serial port/USB |
|
Ethernet |
None |
|
Program download |
Serial port/USB HOST (Micro USB) |
|
COM port |
COM0:RS232/RS485/RS422; COM2:RS232 |
|
Electrical specification |
|
|
Input power supply |
DC10V~DC28V |
|
Rated power |
2W@DC24V |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
|
Shell material |
Metal |
|
Dimensions(mm) |
128×75×27(mm) |
|
Cutout size(mm) |
107.2×68.9(mm) |
|
Weight |
0.2 Kg |
|
Environment specification |
|
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Panel protection grade |
Conforming to IP65 certification (4208-93) |
|
CE certification |
EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 |
|
Software |
|
|
Configuration software |
Kinco DTools V4.1 and above vertion |
Thông tin đặt hàng
4.3″, 16.77 million color, TFT, 480*272 resolutiion, 2*COM, 1* MicroUSB. Without cover
Tài liệu
User Manual
Software
