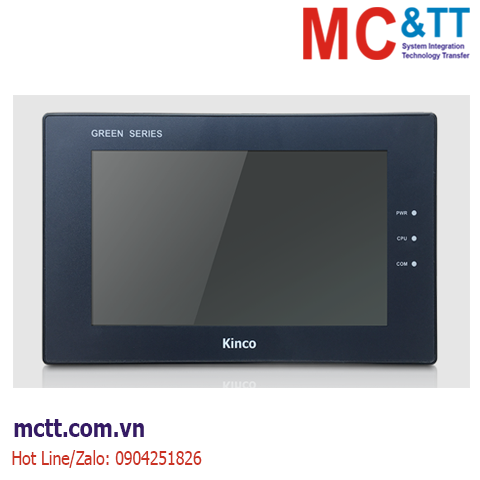

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 7 inch Kinco GH070E (4 COM, 1 USB Host, 1 SD Card, Ethernet)
Tính năng
Thông số kỹ thuật
|
Model |
GH070 |
GH070E |
|
Performance specification |
||
|
Display size |
7" TFT |
|
|
Display area |
154.08mm(W)*85.92mm(H) | |
|
Resolution |
800*480 pixels | |
|
Display color |
16.7M true color | |
|
Display angle of view |
70/70/50/70 (left/right/up/down) |
|
|
Contrast ratio |
500:1 |
|
|
Backlight |
LED |
|
|
Brightness |
400cd/m2 |
|
|
Backlight life |
More than 30000 hours |
|
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
|
CPU |
ARM RISC 32Bit 800MHz |
|
|
Storage |
128MB NAND Flash Memory + 128MB DDR3 Memory |
|
|
RTC |
Built-in real time clock |
|
|
Extensible memory |
1 USB Host | 1 USB Host + 1 SD Card |
|
Printer port |
USB Host/ serial port |
|
|
Ethernet |
None |
10/100MHz self-adaption |
|
Program download |
USB Slave (Type B)/ U disk | USB Slave (Type B)/ U disk/ Ethernet |
|

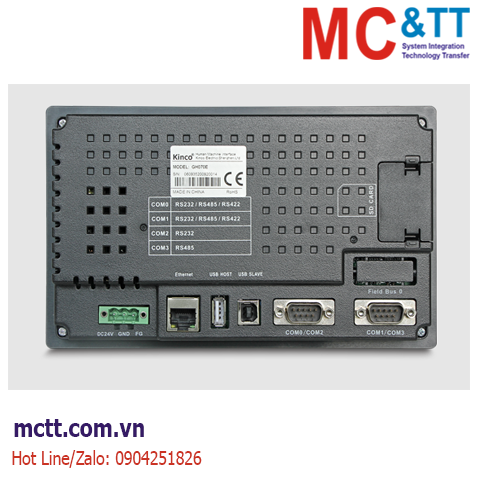

COM port |
COM0:RS232/RS485/RS422 COM1:RS232/RS485/RS422 COM2:RS232, COM3:RS485 |
|
| Serial port isolation | None | Built-in |
|
Electrical specification |
||
|
Rated power |
5W @24VDC |
|
|
Input power supply |
DC10.8V~DC28V, Built-in isolation power supply | |
|
Allowable loss of power |
<3ms |
|
|
Insulation resistance |
Over 50MΩ@ 500V DC |
|
|
Hi-pot test |
500V AC 1 minute |
|
|
Structure specification |
||
| PCB | Exquisite spraying | |
|
Shell material |
Engineering plastic |
|
|
Dimensions(mm) |
207*125*41 mm | |
|
Cutout size(mm) |
194*113 mm | |
|
Weight |
0.6Kg |
|
|
Environment specification |
||
|
Operating temperature |
-10° C ~ 55° C | |
|
Operating humidity |
10～90% non-condensing |
|
|
Storage temperature |
-20～60℃ |
|
|
Storage humidity |
10～90% non-condensing |
|
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
|
Cooling method |
Natural air cooling |
|
|
Certification |
||
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
|
CE certification |
Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 |
|
|
Software |
||
|
Configuration software |
Kinco DTools V3.3 and above |
|
Thông tin đặt hàng
7″, 16.77 million, 800*480 resolution, 4*COM, 1*USB HOST, 1*USB SLAVE, Ethernet, 1* SD port, isolation power and serial port, MB coating protection
