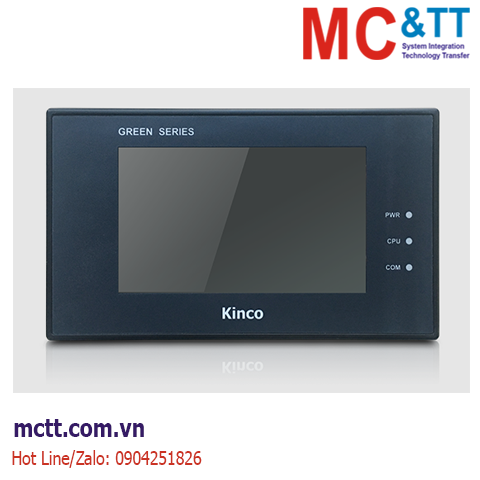

Màn hình cảm ứng HMI 4.3 inch Kinco GH043 (2 COM, 1 USB Host)

Chia sẻ

Thương hiệu: Kinco Loại: 4.3 inch

Tình trạng: Còn hàng

Mã sản phẩm: GH043

4.3″ TFT, 16.77 million color, 480*272 resolution, 2*COM, 1*USB HOST, 1*USB SLAVE, isolation power, MB coating protection

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Màn hình cảm ứng HMI 4.3 inch Kinco GH043 (2 COM, 1 USB Host)

Tính năng

The preferred model for rail transit, high-speed subway.
Motherboard with three - prevention treatment, effective response to complex use environment.
Built-in isolated power supply, enhance reliability.
Classic shape, hidden serial port outgoing cable.

Thông số kỹ thuật

Model	GH043	GH043E
Performance specification
Display size	4.3" TFT
Display area	95.04mm (W) x53.86mm (H)
Resolution	480*272 pixel
Display color	16.7M true color
Display angle of view	70/70/50/70 (left/right/up/down)
Contrast ratio	500:1
Backlight	LED
Brightness	300cd/m2
Backlight life	More than 30000 hours
Touch Panel	4 wire precision resistance network (surface hardness 4H)
CPU	ARM RISC 32Bit 792MHz
Storage	128MB NAND Flash Memory + 128MB DDR3 Memory
RTC	Built-in real time clock
Extensible memory	1 USB Host	1 USB Host + 1 SD Card
Printer port	USB Host/ Serial port
Ethernet	None	10/100MHz self-adaption
Program download	USB Slave (Type B)/ U disk	USB Slave (Type B)/ U disk/ Ethernet
COM port	COM0: RS232/RS485/RS422; COM2: RS232
Serial port isolation	None
Electrical specification
Rated power	3.5W @24VDC
Input power supply	DC10.8V~DC28V, Built-in isolation power supply
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@ 500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	Exquisite spraying
Shell material	Engineering plastic
Dimensions(mm)	1548960 mm
Cutout size(mm)	146*81 mm
Weight	0.4Kg
Environment specification
Operating temperature	-20° C ~ 55° C
Operating humidity	10～90% non-condensing
Storage temperature	-25～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification (4208一93)
CE certification	Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools V3.3 and above
