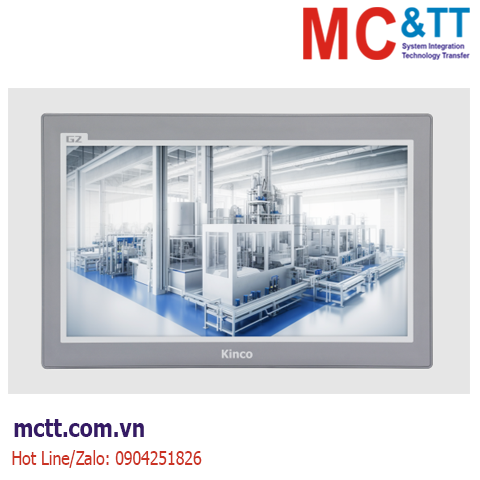

Màn hình cảm ứng HMI 15.6 inch Kinco G2156E2 (2 COM, 1 USB Host, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 15.6 inch

Tình trạng: Còn hàng

Mã sản phẩm: G2156E2

15.6" 16.77 million true color, 1920*1080 resolution, quad-core CPU, flash memory 4G, memory 512MB, 2 COM ports, standard 1 USB HOST, 1 USB SLAVE, 2 network ports, metal front and rear shell

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

Màn hình cảm ứng HMI 15.6 inch Kinco G2156E2 (2 COM, 1 USB Host, 2 Ethernet)

Tính năng

15.6" display with 2K resolution and 16 million true colors;
Dual Ethernet port and dual serial port design, reliable communication;
Quad-core CPU with 512MB RAM and 4GB flash storage, ultimate performance;
Metal shell with power isolation, safe and reliable;
Comes with the latest Kinco DToolsPro configuration software

Thông số kỹ thuật

Performance specification
Display size	15.6" TFT
Display area	344.16mm(W)x193.59mm(H)
Resolution	1920*1080px
Display color	16.7M true color
Display angle of view	80/80/80/80(L/R/U/D)
Contrast ratio	1000:1
Backlight	LED
Brightness	250cd/m2
Backlight life	＞20000 hours
Touch Panel	4 wire precision resistance network (surface hardness 3H)
CPU	Quad-core 1.8GHz
Memory	4GB Flash Memory+512MB Memory
RTC	Built-in RTC
Extensible memory	1USB Host
Printer port	USB Host/Serial port
Program download	Ethernet port/USB Slave/U disk
Ethernet	LAN0:10/100 Mbps; LAN1:10/100 Mbps
Communication port	COM0:RS232/RS485/RS422;COM2:RS232
Electrical specification
Input power supply	DC18V～DC28V, built-in isolated power supply
Rated power	15W @24V DC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	None
Shell material	Metal
Shape size(mm)	39525925.5mm
Cutout size(mm)	381.5*245.5mm
Installation mode	Installation of Fasteners and VESA Mounting(VESA100*100mm)
Weight	2.5 Kg
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification (4208一93)
CE certification	EN IEC61000-6-4:2019, EN IEC61000-6-2:2019
Software
Configuration software	Kinco DToolsPro

Thông tin đặt hàng

G2156E2

15.6" 16.77 million true color, 1920*1080 resolution, quad-core CPU, flash memory 4G, memory 512MB, 2 COM ports, standard 1 USB HOST, 1 USB SLAVE, 2 network ports, metal front and rear shell

Tài liệu

Datasheet

User Manual

Software

Kinco DToolsPro V1.3.0(Build230719)
