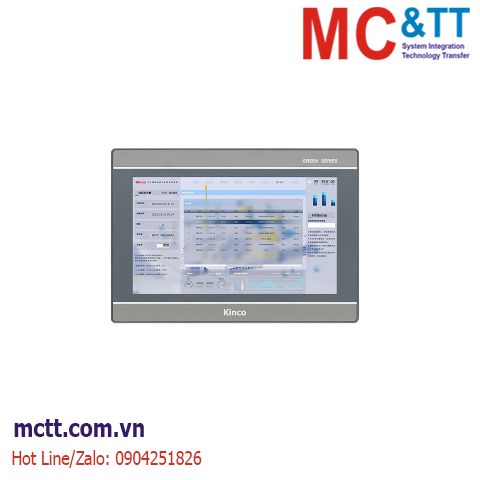

Màn hình cảm ứng HMI 10.1 inch Kinco G2101E2 (3 COM, 1 USB Host, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 10.1 inch

Tình trạng: Còn hàng

Mã sản phẩm: G2101E2

Industrial HMI 10.1 inch G2101E2 (3 COM, 1 USB Host, 2 Ethernet)

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 10.1 inch Kinco G2101E2 (3 COM, 1 USB Host, 2 Ethernet)

Tính năng

Thông số kỹ thuật

Performance specification
Model	G2101E	G2101E2
Display size	10.1" TFT
Display area	222.72(H) x 125.28(V)
Resolution	1024*600px
Display color	16.77M true color
Display angle of view	70/70/60/60 (L/R/U/D)
Contrast ratio	500:1
Backlight	LED
Brightness	350cd/m2
Backlight life	30000 hours
Touch Panel	4 line precision resistance network (surface hardness 4H)
CPU	Quad-core ARM 1.5GHz
Memory	4GB eMMC + 512MB Memory
RTC	Built-in
Extensible memory	1USB Host
Printer port	USB Host/Serial port
Program download	Ethernet port/USB Slave/Serial port
Ethernet	LAN0:10/100 Mbps	LAN0:10/100 Mbps; LAN1:10/100 Mbps
Communication port	COM0:RS232/RS485/RS422; ;COM1:RS485/RS422; COM2:RS232
Electrical specification
Input power supply	DC18V～DC28V
Rated power	7W @24V DC
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	None
Shell material	Engineering plastic
Shape size(mm)	27121338mm
Cutout size(mm)	260*202mm
Weight	1.1 Kg
Environment specification
Operating temperature	0～50℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65 certification (4208一93)
CE certification	EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Software
Configuration software	Kinco DTools Pro
