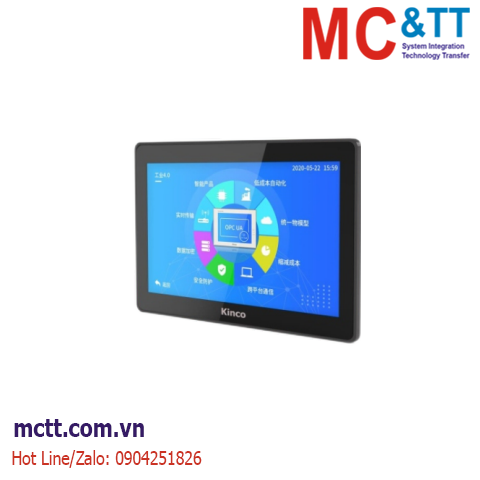

Màn hình cảm ứng HMI 10.1 inch chống nước Kinco G100E2-WIFi-PR01 (3 COM, 1 USB Host, 2 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 10.1 inch

Tình trạng: Còn hàng

Mã sản phẩm: G100E2-WIFi-PR01

Waterproof Dedicated Touch Screen

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 10.1 inch chống nước Kinco G100E2-WIFi-PR01 (3 COM, 1 USB Host, 2 Ethernet)

Tính năng

Thông số kỹ thuật

Performance specification
Display size	10.1″TFT
Display area	222.72*125.28mm
Resolution	1024*600 pixel
Display color	16.7M
Display angle of view	85/85/85/85(left/right/up/down)
Contrast ratio	800:1
Backlight	LED
Brightness	250cd/m2
Backlight life	More than 30000 hours
Touch panel	4 line precision resistance network（surface hardness 3H）
CPU	ARM RISC 32Bit 800MHz
Storage	256MB NAND Flash Memory + 256MB DDR3 Memory
RTC	Built-in RTC
Extensible memory	1 USB Host
Printer port	USB Host/serial port
Ethernet	LAN0꞉10/100Mbps LAN1꞉10/100Mbps
Program download	USB Slave (Micro USB)/U disk/Ethernet port
COM port	COM0꞉RS232/485/422; COM1꞉485/422/CAN; COM2꞉RS232;
Extended interface	None
Electrical specification
Input power supply	DC18V～DC28V, built-in isolated
Rated power	15W @24VDC
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB coating (Yes/No)	Yes
Shell material	Metallic
Dimensions(mm)	166 ×254 ×32.6 mm
Cutout size(mm)	192 ×138 mm
Weight	1.65 Kg
Environment specification
Operating temperature	-20～70℃
Operating humidity	10～90% non-condensing
Storage temperature	-30～80℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X,Y,Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	IP65 certification(4208-93)
CE certification	EN61000-6-4:2019, EN61000-6-2:2019
Software
Configuration software	Kinco DTools V4.1 and above version
