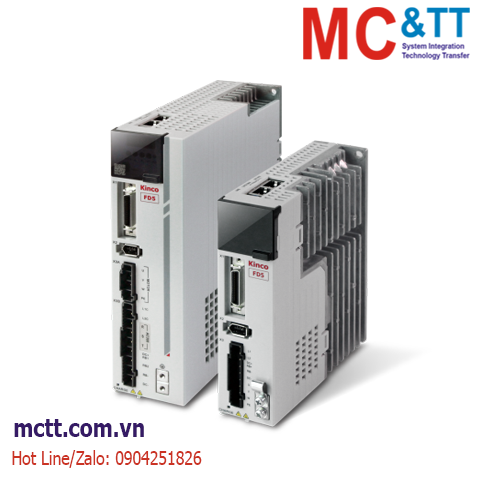

Bộ điều khiển AC Servo Driver AC220V, 1500/2000W, EtherCAT Kinco FD435-EA-000

Chia sẻ

Thương hiệu: Kinco Loại: 1500/2000W

Tình trạng: Còn hàng

Mã sản phẩm: FD435-EA-000

AC Servo Driver AC220V, 1500/2000W, EtherCAT

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Bộ điều khiển AC Servo Driver AC220V, 1500/2000W, EtherCAT Kinco FD435-EA-000

Tính năng

Pulse control
MODBUS, CANopen, EtherCAT, Profinet
Strong compatibility,compatible with 3 generations of product parameters, and parameters updatable for replacement
Dynamic braking function control
EASY Tune optimization upgrade and online self-tuning available
Equipped with the trap filter for vibration suppression.
S-curve control
High-precision encoder applicable
Real-time synchronous control, which can effectively improve production efficiency and increase multi-axis synchronization control accuracy.
IO includes 7 digital inputs, 5 digital outputs and encoder output function.
Provide driver over-voltage and under-voltage protection, over-current protection, overheat protection, short-circuit protection, etc.

Thông số kỹ thuật

Series	Model	Power (W)	Supply voltage	Maximum continuous output current (rms) (A)	Peak current (A)	Control mode
FD5 series	FD425-LA-000	200/400	AC220V	3.9	18	RS485
	FD425-CA-000					CANopen
	FD425-EA-000					EtherCAT
	FD425-PA-000					Profinet
	FD425-LF-000	750/1000		5	18	RS485
	FD425-CF-000					CANopen
	FD425-EF-000					EtherCAT
	FD425-PF-000					Profinet
	FD435-LA-000	1500/2000		10	27.5	RS485
	FD435-CA-000					CANopen
	FD435-EA-000					EtherCAT
	FD435-PA-000					Profinet
	FD625-LA-000	1500/2000/3000	AC380V	7	25	RS485
	FD625-CA-000					CANopen
	FD625-EA-000					EtherCAT
	FD625-PA-000					Profinet
