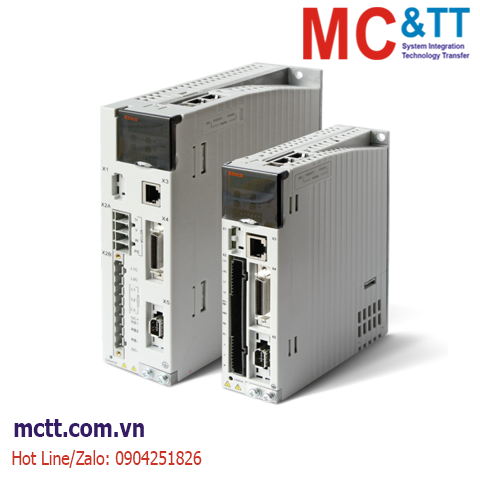

Bộ điều khiển AC Servo Driver AC220V, 50/100/200W, RS485 Kinco FD413-LA-000

Bộ điều khiển AC Servo Driver AC220V, 50/100/200W, RS485 Kinco FD413-LA-000

CD3/FD3 series AC servo system is an economical servo product launched by Bucco to the general servo market, with a power range of 50W~3kW. It can be widely used in logistics, C electricity, printing and packaging, textile machinery, machinery, lithium batteries, new energy and other industries.

Tính năng

• CD3 series support pulse control
• FD3 eries support MODBUS, CANopen, EtherCAT control.
• Support EASY TUNE auto-tuning function, Can satisfy with most of application's requirements with simple setting in system stiffness.
• Support dynamic braking function.
• Support encoder arbitrary frequency division output.
• Supports up to 4MHz pulse frequency input.
• With over-pressure, over-current, overheating and other protection measures.
• Built-in brake resistance that supports overheating protection.
• Support magnetoelectric single-turn absolute encoder,16/20 bit multi-turn absolute encoder, encoder Max. working temperature up to 120 degrees
• The series of products have passed CE certification, and conform with ROHS environmental certification standards.
• Conform with UL certification standards.

Thông số kỹ thuật

Thông tin đặt hàng

Tài liệu

Kinco CD3FD3 Catalog2206

CD3&FD3_User_Manual
