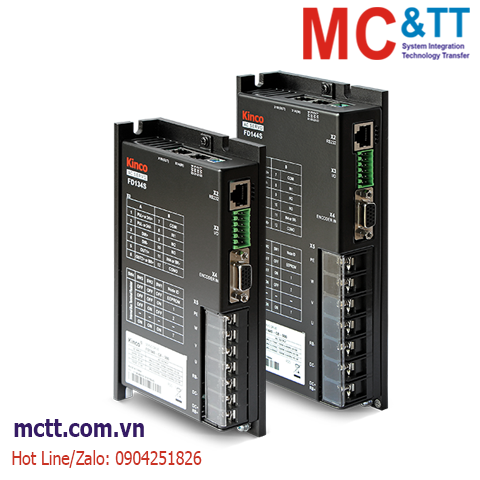

Bộ điều khiển DC Servo Driver 50~100W, CANopen Kinco FD114S-CB-000

Chia sẻ

Thương hiệu: Kinco Loại: 50/100W

Tình trạng: Còn hàng

Mã sản phẩm: FD114S-CB-000

DC Servo Driver 50~100W, CANopen

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Bộ điều khiển DC Servo Driver 50~100W, CANopen Kinco FD114S-CB-000

Tính năng

Support pulse.
Support MODBUS, CANopen and EtherCAT communication control.
Low-voltage DC power supply, satisfy with requirements of AGV's power and power supply.
New small-Size terminal design, compact size and beautiful appearance.
3 times(for maximum) overload design, increase response speed when AGV start/stops.
Over-current, over-heat, over-voltage and motor over-heat protection(I²T), ensure driving system in a safe state.
All series products conform with CE verification and ROHS environment verification standard.

Thông số kỹ thuật

FD1X4S series	Model	Power （W)	Max continuous output current （rms)(A)	Current (PEAK)	Control mode	Brake power supply	24V Logic Power Supply
single -axis	FD114S-LB-000	50~100W	5Arms	8Ap	RS485，pulse	●	○
	FD114S-CB-000				CANopen	●	●
	FD114S-EB-000				EtherCAT	●	●
	FD124S-LA-000	200~400W	15Arms （No auxiliary heat dissipation up to 12Arms)	48Ap	RS485，pulse	○	○
	FD124S-LB-000				RS485，pulse	●	○
	FD124S-CA-000				CANopen	○	●
	FD124S-CB-000				CANopen	●	●
	FD124S-EA-000				EtherCAT	○	●
	FD124S-EB-000				EtherCAT	●	●
	FD134S-LA-000	750W	25Arms (No auxiliary heat dissipation up to 20Arms)	80Ap	RS485，pulse	○	○
	FD134S-LB-000				RS485，pulse	●	○
	FD134S-CA-000				CANopen	○	●
	FD134S-CB-000				CANopen	●	●
	FD134S-EA-000				EtherCAT	○	●
	FD134S-EB-000				EtherCAT	●	●
	FD144S-LA-000	1.2~1.5kW	40Arms (No auxiliary heat dissipation up to 30Arms）	120Ap	RS485，pulse	○	○
	FD144S-LB-000				RS485，pulse	●	○
	FD144S-CA-000				CANopen	○	●
	FD144S-CB-000				CANopen	●	●
	FD144S-EA-000				EtherCAT	○	●
	FD144S-EB-000				EtherCAT	●	●
	FD164S-CB-000	2.5KW	80Arms (No auxiliary heat dissipation up to 60Arms）	240Ap	CANopen	●	●
Double-axis	FD134S-LB-000-D2	750W	20Arms (No auxiliary heat dissipation up to15Arms)	80Ap	RS485，pulse	●	○
	FD134S-CB-000-D2				CANopen	●	●
	FD134S-CB-020-D2				CANopen	●	○
Notes: ● means support, ○ means not support.
