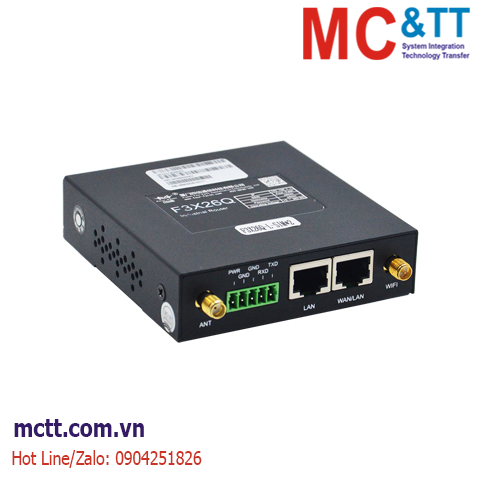

Miễn phí vận chuyển với đơn hàng từ 10.000.000đRouter công nghiệp 4G (LTE) 1 cổng WAN + 1 cổng LAN + Wifi Four-Faith F3X26Q
F3X26Q is an IoT wireless communication router. It is using public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users. The product uses the high-performance industrial-grade CPU and wireless module, with the embedded real-time operating system as the software support platform. It provides a RS232 (or RS485), 1 ethernet LAN, 1 ethernet WAN and a WIFI, can be connected to the serial device, ethernet devices and WIFI devices at the same time, achieve data pass-through function.
The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.
Tính năng
Thông số kỹ thuật
| Item | Content |
| F3X26Q-FL FDD-LTE WIFI Industrial Router | |
| Standard and Band | Support FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28 Support TDD-LTE B38/B39/B40/B41 Support TD-SCDMA: B34, B39 Support HSPA+/UMTS B1/B2/B5/B8 Support EV-DO: BC0 CDMA 1x: BC0 Support EDGE/GPRS/GSM 850/900/1800/1900MHz |
| Bandwidth | FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mpbs, uplink rate 5.76 Mbps UMTS: 384Kbps |
| Transmit Power | <23dBm |
| Sensitivity | <-97dBm |
| F3X26Q-L LTE WIFI Industrial Router | |
| Standard and Band | Support all band: FDD-LTE, TD-LTE, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE |
| Bandwidth | FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps EVDO Rev. A: Downstream rate 3.1Mbps, uplink rate 1.8Mbps |
| Transmit Power | <23dBm |
| Sensitivity | <-97dBm |
| Item | Content |
| Standard and Band | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (Maximum) IEEE802.11n: 144Mbps (Maximum) |
| Security | Support WEP, WPA, WPA2 encrypt methods, optional WPS function |
| Transmit Power | 15±2dBm |
| Sensitivity | <-72dBm@54Mbps |
| Item | Content |
| CPU | Industrial-grade CPU |
| FLASH | 16MB(128MB, special version available) |
| DDR2 | 128MB |
| Item | Content |
| WAN Interface | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD |
| LAN Interface | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD |
| Serial | 1 x RS232/485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s |
| LED Indicators | “PWR”, “Online”, “LAN”, “WAN/LAN”, “WIFI” |
| Antenna Interface | Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω |
| SIM/UIM Slot | Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card option |
| Power Interface | Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection |
| Reset Button | Can reset router’s configuration to default factory setting by this button |
| Item | Content |
| Input Voltage | DC 12V/1.5A |
| Accepted Range | DC 5~36V |
| Work Mode | Consumption |
| Standby | 95~135mA@12VDC |
| Communicating | 165~220mA@12VDC |
| Casing | Metal casing, IP30 protection level, suitable for most industrial control applications. |
| Dimensions | 93x89x24mm (excluding antennas and mountings) |
| Weight | 250g |
| Item | Content |
| Operating Temperature |
-35~+75℃ |
| Storage Temperature |
-40~+85℃ |
| Relative Humidity | 95% (non-condensing) |
Thông tin đặt hàng
| Model | Description | WAN | LAN | Cellular Antenna |
WIFI Antenna |
SIM/UIM |
| F3X26Q-FL | FDD/TDD-LTE WIFI Industrial Router | 1 | 1 | 1 | 1 | 1 |
| F3X26Q-L | LTE WIFI Industrial Router | 1 | 1 | 1 | 1 | 1 |
| F3X26Q-FL-SIM2 | FDD/TDD-LTE WIFI Industrial Router | 1 | 1 | 1 | 1 | 2 |
| F3X26Q-L-SIM2 | LTE WIFI Industrial Router | 1 | 1 | 1 | 1 | 2 |
