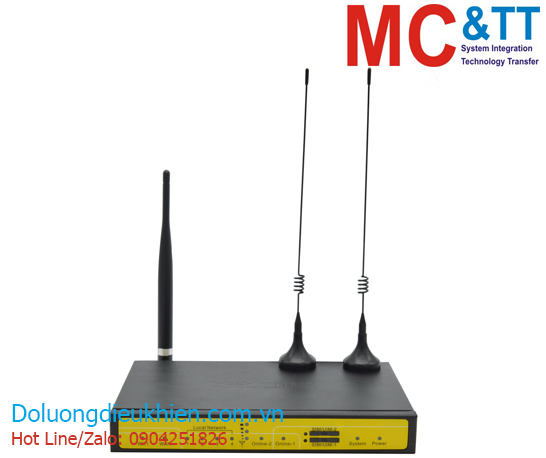

F3A46: Router công nghiệp Dual Sim LTE (4G) 4 LAN + 1 WAN + RS-232 + APN/VPN Wi-Fi

Chia sẻ

Thương hiệu: Four-Faith Loại: Router 5*LAN + Wi-Fi + Dual SIM

Tình trạng: Còn hàng

Mã sản phẩm: F3A46

CAM KẾT CỦA CHÚNG TÔI

Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.
Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Mô tả sản phẩm

F3A46: Router công nghiệp Dual Sim LTE (4G) 4 LAN + 1 WAN + RS-232 + APN/VPN Wi-Fi

Features

●  LTE (4G)
●  Samart Link Switch Backup
●  Powerful WIFI
●  Provide More Security Deployment Scenarios
●  Reliable Networking And Communication
●  Support APN/VPDN
●  Convenient configuration and maintenance interface
●  Support Local and Remote Firmware Upgrade

Smart Link Switch Backup
dual sim router Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.

Provide More Security Deployment Scenarios
dual sim router Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible

Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to dual sim router unattended systems

Specification

Cellular Specification

Cellular Module	Industrial cellular module
Cellular Module	Industrial cellular module
Standard and Band	LTE FDD,LTE TDD,EVDO,WCDMA,TD-SCDMA,CDMA1X,GPRS/EDGE
Bandwidth	LTE FDD: Download speed 100Mbps, Upload speed 50Mbps LTE TDD: Download speed 61Mbps, Upload speed 18Mbps DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps
TX power	<23dBm
RX sensitivity	<-97dBm

WIFI Specification

Item	Content
Standard	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max)
Security	WEP, WPA, WPA2, etc WPS (optional)
TX power	20dBm(11n),24dBm(11g),26dBm(11b)
RX sensitivity	<-72dBm@54Mpbs

Hardware System

Item	Content
CPU	Industrial 32bits CPU
FLASH	16MB(Extendable to 64MB)
SDRAM	128MB

Interface type

Item	Content
WAN	1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN	4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps
Indicator	"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", "Signal Strength"
Antenna	Cellular:2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and over-voltage protection
Reset	Restore the router to its original factory default settings
