10.4",16.77 million color, 1024*768 resolution, 3*COM, 2*USB host, 1*USB slave, 1*Ethernet port, 1* SD, 1*CANopen isotated power, audio output
Cam kết 100% chính hãng
Hoàn tiền 111% nếu hàng giả
Giao hàng nhanh chóng & an toàn
Hàng hóa đầy đủ CO, CQ
Hỗ trợ 24/7
Khuyến mãi đặc biệt !!!
Áp dụng Phiếu quà tặng/ Mã giảm giá theo ngành hàng.

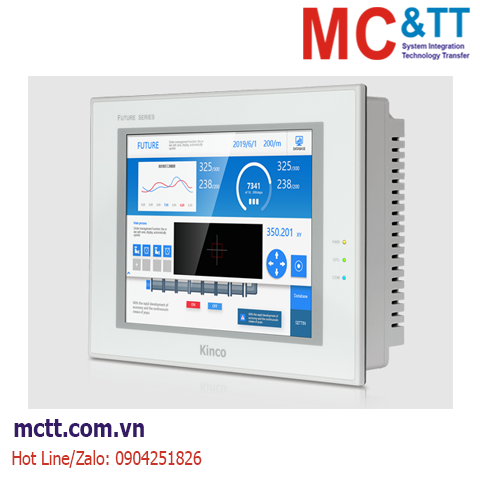

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 10.4 inch Kinco F104E-CAN (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet, 1 CANopen)
Tính năng
Thông số kỹ thuật
|
Model |
F104E | F104E-CAN |
|
Performance specification |
||
|
Display size |
10.4″ TFT | |
|
Resolution |
1024*768 pixel | |
|
Display color |
16.77M color |
|
|
Backlight |
LED |
|
|
Brightness |
450cd/m2 |
|
|
Backlight life |
More than 50000 hours |
|
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
|
CPU |
32bit RISC Cortex-A9 1GHz |
|
|
Storage |
4GB Flash Memory+512MB Memory |
|
|
RTC |
Built-in RTC+32KB |
|
|
Extensible memory |
2 USB Host + 1 SD Card | |
|
Printer port |
USB Host/ Serial port |
|
|
Ethernet |
10/100MHz self-adaption |
|
| Extended interface | None | 1*CANopen |
|
Program download |
USB Slave/U Disk/Ethernet | |
|
COM port |

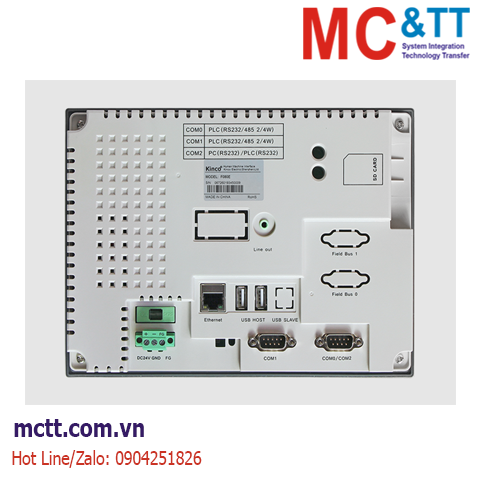

COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232 | |
| Audio output | 1*Audio output | |
|
Electrical specification |
||
|
Input power supply |
DC10V~DC28V,Built-in isolation power supply |
|
|
Rated power |
12W @24V DC |
|
| Allowable loss of power |
<3ms |
|
|
Insulation resistance |
Over 50MΩ@500V DC |
|
|
Hi-pot test |
500V AC 1 minute |
|
|
Structure specification |
||
|
Shell material |
Engineering plastic |
|
|
Dimensions(mm) |
310.6×230.6×55.7 (mm) | |
|
Cutout size(mm) |
299×219 (mm) | |
|
Weight |
1.7 Kg |
|
|
Environment specification |
||
|
Operating temperature |
-10～50℃ |
|
|
Operating humidity |
10～90% non-condensing |
|
|
Storage temperature |
-20～60℃ |
|
|
Storage humidity |
10～90% non-condensing |
|
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
|
Cooling method |
Natural air cooling |
|
|
Certification |
||
|
Degree of protection |
Conforming to IP65 certification |
|
|
CE certification |
CE compliant | |
|
Software |
||
|
Configuration software |
Kinco DTools V3.4 and above version | |
Thông tin đặt hàng
10.4",16.77 million color, 1024*768 resolution, 3*COM, 2*USB host, 1*USB slave, 1*Ethernet port, 1* SD, 1*CANopen isotated power, audio output
