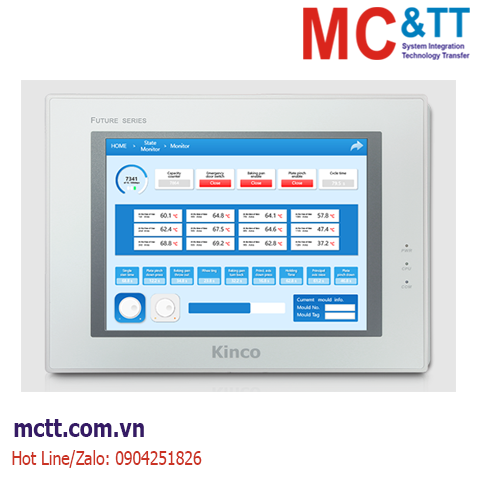

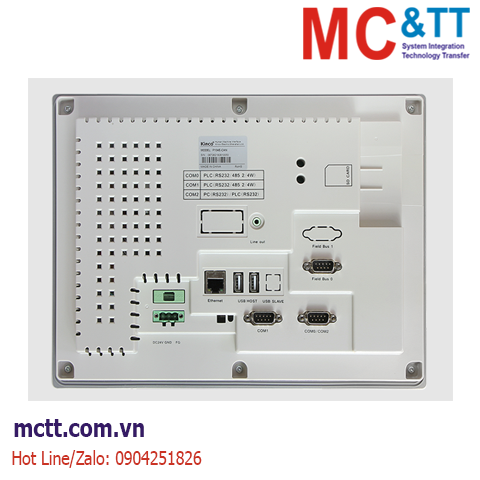

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 8 inch Kinco F080E (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet)
Tính năng
Thông số kỹ thuật
|
Performance specification |
|
|
Display size |
8" TFT |
|
Resolution |
800*600 |
|
Display color |
16.77M true color |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
over 30000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
32bit RISC Cortex-A9 1GHz |
|
Storage |
4GB Flash Memory+512MB Memory |
|
RTC |
Built-in RTC+32KB |
|
Extensible memory |
2 USB Host+1 SD Card |
|
Printer port |
USB Host/Serial port |
| Program download | USB Slave/U Disk/Ethernet |
| Ethernet | 1*10/100MHz self-adaption |
| Communication port | COM0:RS232/RS485/RS422; COM1:RS232/RS485/RS422; COM2:RS232 |
| Audio output | 1*Audio output |
|
Electrical specification |
|
|
Input power supply |
DC12V~DC28V, inbuilt isolated power supply |
|
Rated power |
8W |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
| PCB | Exquisite spraying |
|
Shell color |
Light gray |
| Shell material | Engineering plastic |
|
Shape size(mm) |
235×172×57.9 (mm) |
|
Cutout size(mm) |
224×161 (mm) |
|
Weight |
1.27 Kg |
|
Environment specification |
|
|
Operating temperature |
-10～55℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X, Y, Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Degree of protection |
Conforming to IP65 |
|
CE certification |
CE certification |
|
Software |
|
|
Configuration software |
Kinco DTools V4.1 and above version |
Thông tin đặt hàng
8",16.77 million color, 800*600 resolution,3* COM, 2*USB host,1*USB slave, 1*Ethernet port, 1* SD, isotated power, audio output.
Tài liệu
User Manual
Software
