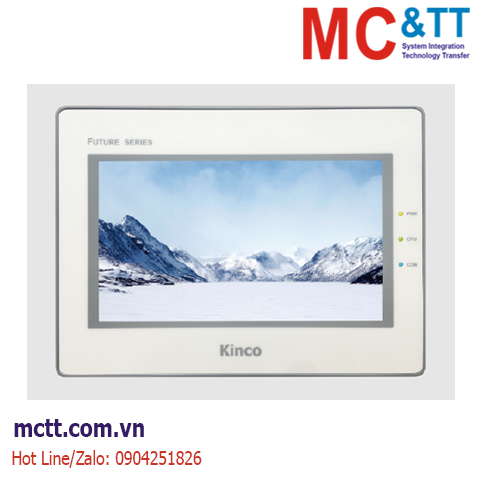

Màn hình cảm ứng HMI 7 inch Kinco F070E (3 COM, 1 USB Host, 1 Ethernet)

Chia sẻ

Thương hiệu: Kinco Loại: 7 inch

Tình trạng: Còn hàng

Mã sản phẩm: F070E

7",16.77 million color, 800*480 resolution,3* COM, 1*USB host,1*USB slave, 1*Ethernet port, isotated power, audio output.

CAM KẾT CỦA CHÚNG TÔI

Để được hỗ trợ. Hãy gọi: 0904251826

Khuyến mãi đặc biệt !!!

Màn hình cảm ứng HMI 7 inch Kinco F070E (3 COM, 1 USB Host, 1 Ethernet)

Tính năng

Cortex-A9 industrial CPU，main frequency 1GHz, memory up to 512M
7"，High brightness and high resolution display;
Built in ferroelectric memory supports unlimited erasure of recipe data；
Three proofing spray + isolated power supply to enhance reliability;
Support webcam access, real-time dynamic control;
The new generation of Kinco dtools configuration software is powerful and easy to use.

Thông số kỹ thuật

Performance specification
Display size	7" TFT
Resolution	800*480
Display color	16.77M true color
Backlight	LED
Brightness	400cd/m2
Backlight life	over 30000 hours
Touch Panel	4 wire precision resistance network (surface hardness 4H)
CPU	32bit RISC Cortex-A9 1GHz
Storage	8GB Flash Memory+512MB Memory
RTC	Built-in RTC+32KB
Extensible memory	1USB Host
Printer port	USB Host/Serial port
Program download	USB Slave(Micro USB)/USB /Ethernet/
Ethernet	1*10/100MHz self-adaption
Communication port	COM0:RS232/RS485/RS422; COM1:RS232/RS485/RS422; COM2:RS232
Audio output	1*Audio output
Electrical specification
Input power supply	DC12V~DC28V, inbuilt isolated power supply
Rated power	5W
Allowable loss of power	<3ms
Insulation resistance	Over 50MΩ@500V DC
Hi-pot test	500V AC 1 minute
Structure specification
PCB	Exquisite spraying
Shell color	Light gray
Shell material	Engineering plastic
Shape size(mm)	20415037.2 (mm)
Cutout size(mm)	192*138 (mm)
Weight	0.57 Kg
Environment specification
Operating temperature	-10～55℃
Operating humidity	10～90% non-condensing
Storage temperature	-20～60℃
Storage humidity	10～90% non-condensing
Shockproof test	10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling method	Natural air cooling
Certification
Degree of protection	Conforming to IP65
CE certification	CE certification
Software
Configuration software	Kinco DTools V4.1 and above version
