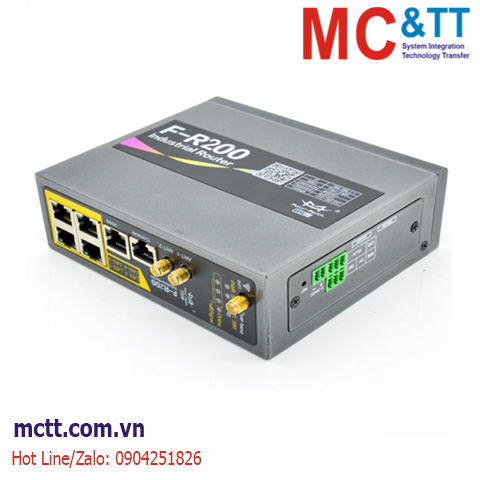

Router công nghiệp 4G (LTE) 1 cổng Gigabit WAN + 4 cổng Gigabit Lan + Wifi + 2DI/DO Four-Faith F-R200
F-R200 cung cấp kết nối từ xa an toàn, đáng tin cậy trong thời gian thực cho các hệ thống SCADA, hệ thống quản lý phân phối, v.v. Với nhiều tùy chọn như 2 SIM, wifi 802.11n, 2.5G / 3G / HSPA + / LTE . Với việc gắn DIN-rail, dải nhiệt độ hoạt động rộng và vỏ kim loại IP30, F-R200 là một giải pháp tiện lợi nhưng đáng tin cậy cho bất kỳ ứng dụng không dây công nghiệp nào.
Sản phẩm được sử dụng rộng rãi trên các lĩnh vực M2M, chẳng hạn như giao thông thông minh, lưới điện thông minh, tự động hóa công nghiệp, đo xa, POS, quan trắc, giám sát môi trường, v.v.
Tính năng
- High-performance industrial-grade CPU
- High-performance industrial-grade wireless communication module
- Metal casing, IP30 protection level, suitable for most industrial control applications
- Wide range power input (DC 5~36V)
- Multiple WAN connection methods, include Static IP/DHCP/PPPOE/DHCP-4G
- Support LTE/EVDO and wired WAN dual link backup（Optional）
- Support VPN client: PPTP/L2TP/IPSEC (Only VPN version can support)
- Support VPN server: PPTP/L2TP/IPSEC (Only VPN version can support)
- Remote management SYSLOG/SNMP/TELNET/SSH/HTTPS
- Support local upgrade and remote upgrade
- Import and export configuration files
- NTP / Build-in RTC
- Support DDNS
- Support VLAN，MAC address clone
- WIFI Support 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional)
- Support Private APN/VPDN
- Support APN/VPDN
- Support DHCP server and DHCP client, DDNS, firewall, NAT, DMZ, QOS
- Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
- Support SPI firewall，VPN pass through, ACL, URL filter
Thông số kỹ thuật
| CELLULAR WAN |
- Supported Frequency Bands
- LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
- WCDMA: 2100(B1), 1900(B2), 850(B5)
- EV-DO/CDMA: 800(BC0)
- GSM/GPRS/EDGE: 850/900/1800/1900
- Automatic SIM based network operator switching
|
| HOST INTERFACES |
- 10/100/1000 Base-T RJ45 Ethernet port
- RS-232 or RS-485 Serial Console Port
- 3 SMA antenna connectors (WIFI and Double-cellular)
- Active GPS antenna support (option)
- (6) pin 3.5mm terminal block
|
| INPUT/OUTPUT |
- (6) pin 3.5mm terminal block
- (2) DI, (1) DO, (1) Relay.
- Input ON Voltage: 5 to 30 VDC
- Input OF Voltage: 0 to 3 VDC
- Output < 50mA @ 30VDC
- Relay:1A 250VAC/30VDC
|
| LAN |
- DNS, DNS Proxy
- DHCP Server
- IP Passthrough (option)
- VLAN
- Host Interface Watchdog
- PPPoE
|
| SERIAL |
- TCP/U DP PAD Mode
- Modbus (ASCII, DTU, Variable)
- PPP
- Reverse Telnet
|
| WI-FI |
- IEEE802.11 ac, compatible IEEE 802.11 b/g/n.
- AP and client mode.
- Adjustable output power (Max: 26dBm)
- Access point for up to 30 clients
- Simultaneous access point/client mode
- WEP, WPA-PSK, WPA2-PSK etc. Security
|
| NETWORK AND ROUTING |
- Network Address Translation (NAT)
- Port Forwarding
- Host Port Routing
- VRRP
- Reliable Static Route
- Dynamic DNS
|
| VPN |
- IPsec, GRE, and OPENVPN Client
- Up to 10 concurrent tunnels
- Split Tunnel
- Dead Peer Detection (DPD)
- Multiple Subnets
- VPN Failover
|
| SECURITY |
- Remote Authentication
- DMZ
- Inbound and Outbound Port filtering
- Inbound and Outbound Trusted IP
- MAC Address Filtering
- PCI DSS V3.0 compatible
|
| GPS (Option) |
- Antenna Interface: SMA Female, 50 ohms impedance
- Tracking Sensitivity: better than -144 dBm
- Horizontal position accuracy: 2.5 m
- Time-To-First-Fix: 29 s
- Protocol: NMEA-0183 V2.3
|
| EVENTS ENGINE (Option) |
- Custom event triggers and reports
- Configurable interface, no programming
- Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
- Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
- Event Actions: Drive Relay Output
|
| Four-Faith MANAGEMENT SERVICE |
- Secure cloud-based device management application
- Remote provisioning
- Gateway configuration and template management
- Configurable monitoring and alerting
- Software and radio module firmware updates
- Auto configuration
|
| MANAGEMENT INTERFACES |
- Web-Based User Interface
- Device Configuration Templates
- Software and radio module firmware updates
- AT Command Line Interface (Telnet/SSH/Serial)
- SMS Commands (Option)
- SNMP
|
| Operating Environment |
- Operating Temperature: -35°C to +75°C / -31°F to +167°F
- Storage Temperature: -40°C to 85°C / -40°F to 185°F
- Humidity: 90% RH @ 60°C
|
| DIMENSIONS |
- Housing & Weight: Metal, **g
- Dimension: (L x W x H): 133 x 115.7 x 45 mm
- Installation: 34.6 mm Din-Rail or wall mounting or desktop
|
Thông tin đặt hàng
| Model No |
Description |
| F-R200-FL |
Cellular (LTE/WCDMA), WIFI, SIM*1, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| F-R200-FL/FL SIM*2 |
Cellular (LTE/WCDMA, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| F-R200-FL-SIM*2 |
Cellular (LTE/WCDMA), WIFI, SIM*2, I/O (2*DI, 1*DO, 1*Relay), GPS(Optional) |
Tài liệu
Datasheet
Manual
