ET-6000 Web based I/O module

The ET-6000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as you surfing the Internet.

Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-6000 offers easily and safely access for users from anytime and anywhere!

In addition, the ET-6000 also supports various Modbus functions. For example, Modbus/TCP slave, Modbus/TCP to Modbus/RTU gateway, Modbus/RTU master, Modbus/RTU slave, and etc, that makes perfect integration for ET-6000 to SCADA software.

The ET-6000 is designed for applications to industrial monitoring and measurement; therefore, we have made it toughly enough to survive the harsh and rough environment. The module contains 2-way isolation from noise and surges, one for digital inputs and the other for Ethernet. The ET-6000 has got a wild range of power input (10~30 VDC) and operating temperature (-25°C ~ +75°C).

back

Built in Web Server

Each ET-6000 module has a built - in web server that allows the users to easily configure, monitor and control the module from a remote location using a regular web browser.

Web HMI

The Web HMI function allows the users to create dynamic and attractive web pages to monitor and control the I/O points. Users can upload specific I/O layout pictures (bmp, jpg, gif format) and define a description for each I/O point. No HTML or Java skills are needed to create the web pages.

Communication Security

An Account and password is needed when logging into the ET-6000 web server. An IP address filter is also included, which can be used to allow or deny connections with specific IP addresses.

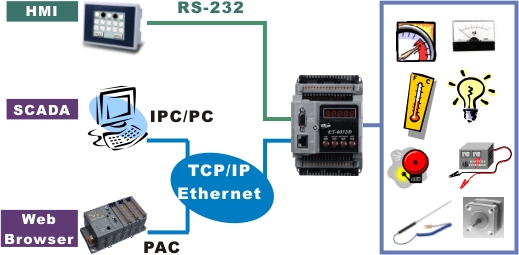

Modbus Protocol

The Modbus/TCP slave function on the Ethernet port can be used to provide data to remote SCADA software.

The Modbus/TCP slave function on the Ethernet port can be used to provide data to remote SCADA
software.

The Modbus/RTU slave function on the RS-232 port can be used to connect to a local HMI.

The Modbus /TCP to Modbus/RTU gateway function through the Ethernet port to the RS-232 port can
be used to upgrade a serial device with Ethernet communication ability.

Built-in Multi-functionI/O

A ll D igital Out put modules provide :

Power on value (On boot up, the DO status is set to the Power-on value)

Safe value (If Modbus/TCP communication is lost for a certain period, the DO status will be set to the
user defined safe value)

All Digital Input modules provide :

High/Low latched status

DI channels can also be used as DI status and 16-bit low speed (100Hz) counters.

An LED indicator is used for each DI or DO channel

All-in-one Module

Various I/O components are mixed with multiple channels in a single module, which provides the most cost effective I/O usage and enhances performance of the I/O operations

3-way Isolated Noise/Surge Protection

To protect the hardware from damage caused by noise and surge, ET-6000 module is designed with isolation circuits for Ethernet, I/O and Power.

Portable Configuration

All configuration settings can be saved to the EEPROM on the ET6000, which is mounted on a daughter board (called the “portable” board), meaning that the settings can stored and easily backed up and moved.

Built-in Dual Watchdog

The Dual Watchdog consists of a Module Watchdog and a Host Watchdog.

Module Watchdog is a built-in hardware circuit that can be used to monitor the operation of the
module and will reset the CPU module if a failure occurs in the hardware or the software.

Host Watchdog is a software function that can be used to monitor the operating status of the
host, and is used to prevent network communication problems or host failures
.

Automatic MDI / MDI-X Crossover for Plug-and-play

RJ-45 port supports automatic MDI/MDI-x that can automatically detect the type of connection to the Ethernet device without requiring special straight or crossover cables.

Ventilated Housing Designed to Operate Between -25°C to +75°C

ET-6000 is housed in a plastic-based shell/case with a column-like ventilator that helps to cool the working environment inside the shell/case and ET-6000 to operate at temperatures ranging from -25°C to +75°C.

I/O Pair Connection

This function is used to create a DI to DO pair through the Ethernet. Once the configuration is completed, ET-6000 module can poll the status of local DI channels and then use the Modbus/TCP protocol to continuously write to a remote DO device in the background.
